Synology RackStation RS3621RPxs - NAS server
- Brand
- Synology
- Product code
- RS3621RPXS
- SKU
- QFE7TX88D3W85
- EAN/GTIN
- 4711174724062
- NAS server
- 12 bays
- rack-mountable
- SATA 6Gb/s
- RAID 0, 1, 5, 6, 10, JBOD, RAID F1, 1 hot spare, 10 hot spare, 5 hot spare, 6 hot spare, F1 hot spare
- RAM 8 GB
- Gigabit Ethernet
- iSCSI support
- 2U
- Weight: 19.28 KG
Product Info

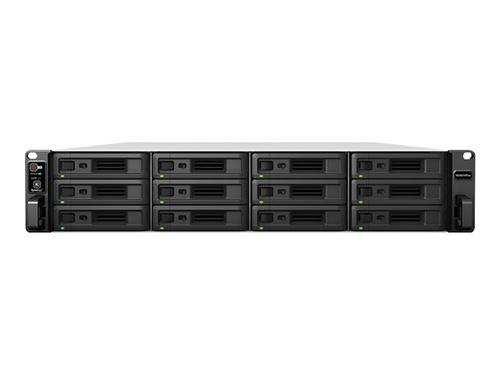

Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput, it is ideal for small businesses.
Description
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Customize to suit
The two built-in PCIe slots allow users to customize RS3621RPxs to satisfy unique performance, networking, and storage requirements.
| General | |
|---|---|
| Depth | 72.4 cm |
| Height | 8.8 cm |
| Host Connectivity | Gigabit Ethernet |
| Width | 48.2 cm |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Total Storage Capacity | 0 GB |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Weight | 14.5 kg () |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x84 (total) / 3 (free) x DIMM 288-pin |

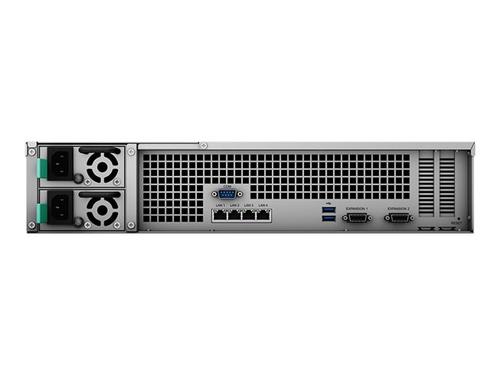

| Interfaces | 4 x Ethernet 1000Base-T - RJ-452 x USB 3.2 Gen 1 - Type A2 x expansion port1 x management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Networking | |
| Remote Management Protocol | SNMP, Telnet, HTTPS |
| Encryption Algorithm | 256-bit AES |
| Compliant Standards | DLNA CERTIFIED |
| Network / Transport Protocol | PPTP, L2TP, iSCSI, SMTP, FTP, DHCP, POP3, IMAP |
| Network Services Compatibility | Microsoft Active Directory (AD), Network File System (NFS), Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Data Link Protocol | 1GbE |
| Features | Firewall protection, VPN support, LDAP support, VLAN support, WOL, print server, antivirus analysis, High Availability, web server, backup server, file sharing, event log, ACL support, iTunes server, DHCP server, FTP server, BitTorrent Client, e-mail server, bandwidth control, surveillance station, eMule client, e-mail notification |
| Miscellaneous | |
| Included Accessories | Accessory pack |
| Compliant Standards | FCC, BSMI, VCCI, RCM, EAC, CCC, KC, UL, RoHS |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 140.01 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 50.2 dBA |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1, RAID 1 hot spare, RAID 10 hot spare, RAID 5 hot spare, RAID 6 hot spare, RAID F1 hot spare |
| Processor / Memory | |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.7 GHz |
| Number of Cores | 6-core |
| Processors Installed | 1 x Intel Xeon D-1531 2.2 GHz |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
