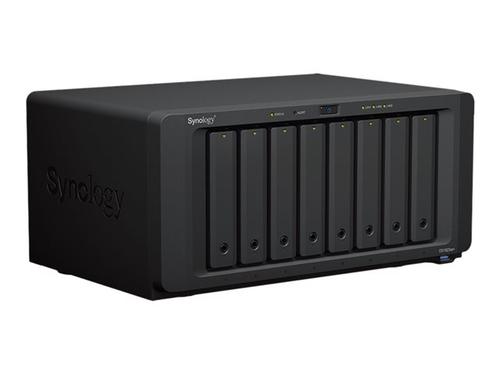

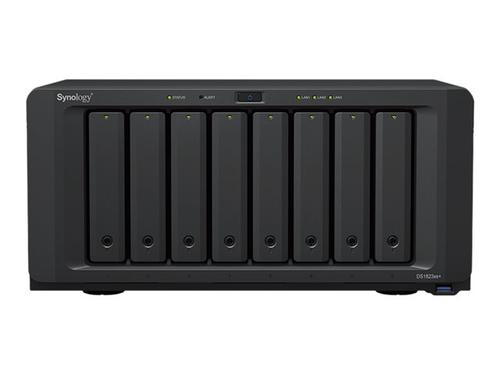

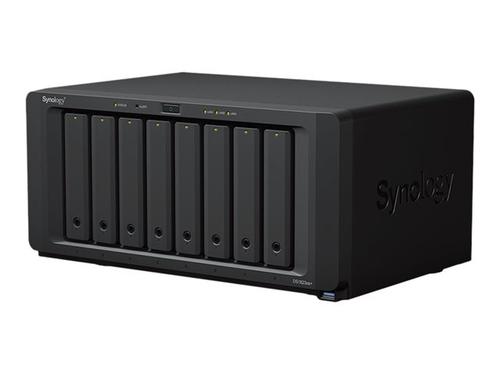

Synology Disk Station DS1823XS+ - NAS server
- Brand
- Synology
- Product code
- DS1823XS++8XHAT33006TB
- SKU
- YCZWWZC2DNAMH
- NAS server
- 8 bays
- SATA 6Gb/s
- RAID RAID F1, JBOD, 0, 1, 5, 6, 10
- RAM 8 GB
- Gigabit Ethernet / 10 Gigabit Ethernet
- iSCSI support
Product Info
The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide secure data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in environments where no dedicated server rack or data center is available.
Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.
Description
Desktop-sized powerhouse
Over 3,100/2,600 MB/s seq. read/write, 1 built-in 10GbE, and up to 144 TB raw storage before expansion.
Flexible configuration
Add up to 10 extra drive bays, 25GbE or Fiber Channel, and SSD cache volumes when needed.
Versatile applications
Back up 300 endpoints, manage 75 IP cameras, 4 or safely sync and share files between devices and sites.
Data integrity protection
The Btrfs file system helps prevent data corruption and loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.
Efficient remote management
Monitor, manage, and replace drives and storage online in Synology DiskStation Manager (DSM). Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).
Plug-and-Play expansion
The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.
The performance you need
Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.
Simply faster
Experience faster file indexing and higher sequential throughput with Synology Drive.
Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.
Backup repository
Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built-in technologies.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DSM's own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Get more with DiskStation manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
| General | |
|---|---|
| Depth | 24.3 cm |
| Width | 34.3 cm |
| Height | 16.6 cm |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Total Storage Capacity | 0 GB |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Weight | 6.2 kg () |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 1 (free) x SO-DIMM 260-pin2 (total) / 2 (free) x M.2 22801 (total) / 1 (free) x PCI Express 3.0 x8 (x4 mode) |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-451 x Ethernet 10Gb - RJ-451 x management3 x USB 3.2 Gen 12 x eSATA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Networking | |
| Encryption Algorithm | SSL, TLS |
| Data Link Protocol | 1GbE, 10GbE |
| Network / Transport Protocol | PPTP, OpenVPN, L2TP |
| Remote Management Protocol | HTTP, HTTPS, SNMP, Telnet, SSH |
| Network Services Compatibility | Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), Microsoft CIFS, Server Message Block (SMB), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Calendaring Extensions to WebDAV (CalDAV), SFTP |
| Features | Link Aggregation, failover protection, Btrfs, EXT4 file system, WOL, WOW, SSD read-write cache, SSD trim, RAID Group, RAID migration, ACL support, NFS Kerberos authentication, LDAP support, MailPlus server, DLNA Media Server, VPN Server, cloud backup, firewall protection, shared folder encryption, SMB encryption, Rsync compatible, login auto block, Let's Encrypt |
| Miscellaneous | |
| Cables Included | 2 x network cable |
| Security Slot Type | Kensington security slot |
| Included Accessories | Accessory pack, power cable |
| Features | Built-in 2 cooling fans, power recovery, scheduled power on/off, Citrix Ready, security lock slot (cable lock sold separately) |
| Compliant Standards | FCC, BSMI, VCCI, RCM, EAC, CCC, KC, RoHS |
| Power | |
| Power Provided | 250 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 87.93 Watt |
| Software / System Requirements | |
| Software Included | McAfee AntiVirus (Trial) |
| Storage Operating System | Synology DiskStation Manager |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 23.6 dBA |
| Humidity Range Operating | 8 - 80% RH |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID F1, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR4 |
| Processors Installed | 1 x AMD Ryzen V1780B 3.35 GHz |
| Security DVR | |
| IP Cameras Supported | 75 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
