Synology RackStation RS422+ - NAS server
- Brand
- Synology
- Product code
- RS422++4XHAT331012TB
- SKU
- 1MUE06UTT507S
- NAS server
- 4 bays
- rack-mountable
- SATA 6Gb/s
- RAID 0, 1, 5, 6, 10, JBOD
- RAM 2 GB
- Gigabit Ethernet
- iSCSI support
- 1U
Product Info

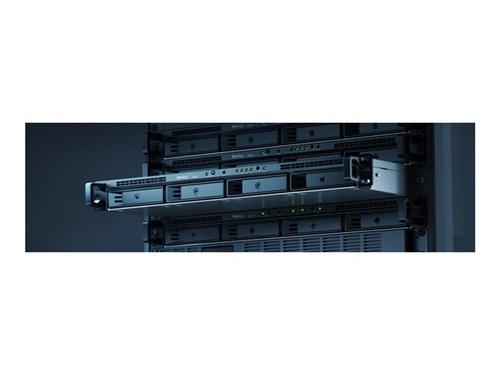

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Description
Space-saving design for flexible deployment
Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.
Flexible networking options
Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.
All-in-one data management platform
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
| General | |
|---|---|
| Built-in Devices | Led panel |
| Height | 4.4 cm |
| Host Connectivity | Gigabit Ethernet |
| Width | 47.8 cm |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Total Storage Capacity | 0 GB |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 1U |
| Depth | 32.75 cm |
| Weight | 4.38 kg () |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x2 |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-451 x USB 3.2 Gen 1 - Type A1 x serial (management) - DB-9 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Encryption Algorithm | AES-NI, SSL, TLS |
| Network / Transport Protocol | SMB, NFS, FTP, iSCSI, HTTP, HTTPs, PPTP, L2TP, SFTP, TCP/IP, IPSec, POP3, SMTP, IMAP, DNS |
| Remote Management Protocol | HTTP, HTTPS, SNMP, LDAP, Telnet, SSH, SFTP, TFTP, RADIUS |
| Network Services Compatibility | Server Message Block (SMB), Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), File Level Security (ACLs), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Microsoft CIFS, HTTP, HTTPS, Calendaring Extensions to WebDAV (CalDAV), Microsoft Active Directory (AD), SFTP, DNS |
| Features | Reset button, hardware encryption, Link Aggregation, failover protection, Btrfs, EXT4 file system, WOL, WOW, SSD trim, Synology Hybrid RAID, ACL support, High Availability, event log, LDAP support, iSCSI LUN clone/snapshot, surveillance station, VPN Server, file sharing, firewall protection, backup server, Rsync compatible, file station, FTP server, cloud station server, Alibaba Cloud OSS support, Backblaze B2 support, Baidu cloud support, Dropbox support, Google Drive support, hubiC support, MegaDisk support, Microsoft OneDrive support, OpenStack Swift-compatible, Tencent COS support, Yandex Disk support, Apple Time Machine compatible, PXE support, DNS server, RADIUS Server, anti-virus protection, white list, cloud backup, bandwidth control |
| Miscellaneous | |
| Included Accessories | Accessory pack |
| Features | Audible alarm, lockable tray, built-in 3 cooling fans, reset button, scheduled power on/off, wake on LAN |
| Compliant Standards | FCC, BSMI, CCC, EAC, VCCI, RCM, UKCA, KC, RoHS |
| Power | |
| Power Provided | 100 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | McAfee AntiVirus (Trial) |
| Storage Operating System | Synology DiskStation Manager |
| OS Required | Apple MacOS, Microsoft Windows, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Sound Emission | 28.5 dBA |
| Humidity Range Operating | 5 - 95% RH |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Interface Type | SATA 6Gb/s |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 1 |
| Number of Cores | Dual-Core |
| Max Turbo Speed | 3.1 GHz |
| RAM | 2 GB DDR4 |
| Processors Installed | 1 x AMD Ryzen Embedded R1600 2.6 GHz |
| Security DVR | |
| IP Cameras Supported | 40 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
