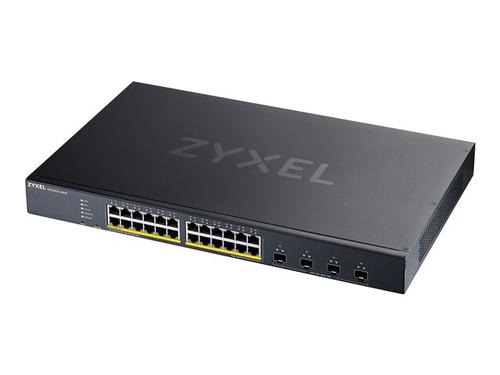

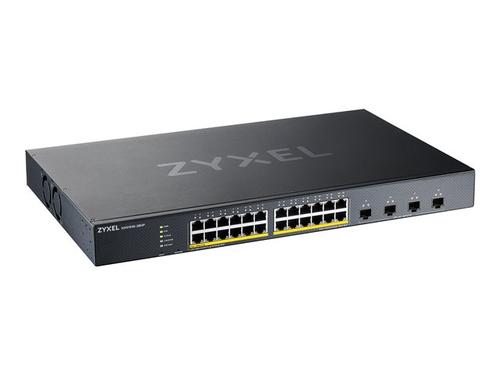

Zyxel GS1935 Series XGS1935-28HP - switch - 24 ports - smart - rack-mountable
- Brand
- Zyxel
- Product code
- XGS1935-28HP-GB0101F
- SKU
- CJ29TIVTWUKMC
- EAN/GTIN
- 4718937636341
- Switch
- L3 Lite
- smart
- 24 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (375 W)
- Weight: 4.99 KG
Product Info
The Zyxel GS1935 Series XGS1935-28HP is designed for enterprises that require robust and reliable switching solutions. With a switching capacity of 128 Gbps and forwarding performance of 95.2 Mpps, this switch handles high-volume data traffic, ensuring seamless network operation. It features 24 ports of 10/100/1000 Mbps with Power over Ethernet (PoE+) support, enabling easy connectivity for various devices including IP cameras and access points. Additionally, the switch offers four 10 Gigabit SFP+ uplink ports for connectivity to the core network.
Description
Reliable performance
With a forwarding performance of 95. 2 Mpps and a packet buffer size of 1. 5 MB, the switch ensures efficient data handling for all connected devices, maintaining performance even under heavy loads.
Comprehensive management
The switch supports a variety of remote management protocols including HTTPS and RMON, allowing for easier monitoring and configuration of network settings to enhance productivity.
Enhanced security
Features like port security and dynamic VLAN support help safeguard the network from unauthorized access while ensuring that sensitive data remains protected throughout transmission.
Environmental adaptability
With an operating temperature range of -20°C to 50°C and storage temperatures of -40°C to 70°C, the switch is built to perform reliably in various environmental conditions.
Energy-efficient design
The switch incorporates Energy Efficient Ethernet technology and features a PoE budget of 375 W, allowing it to optimize power consumption while maintaining performance.
| General | |
|---|---|
| RAM | 32 MB |
| Flash Memory | 512 MB |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| MAC Address Table Size | 16K entries |
| Authentication Method | RADIUS |
| PoE Budget | 375 W |
| Power Over Ethernet (PoE) | PoE+ |
| Jumbo Frame Support | 9KB |
| Device Type | Switch - 24 ports - L3 Lite - smart |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ (uplink) |
| Encryption Algorithm | SSL, SHA-2 |
| Performance | Switching capacity: 128 GbpsForwarding performance: 95.2 MppsPacket buffer size: 1.5 MB |
| Capacity | IPv4 forwarding entries: 512IPv6 forwarding entries: 512Routing table entries: 32IPv4 interfaces: 32IPv6 interfaces: 32 |
| Routing Protocol | IGMP, L2PT, IGMPv2, IGMPv3 |
| Remote Management Protocol | HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, Syslog, ICMP |
| Compliant Standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x |
| Features | VLAN support, Energy Efficient Ethernet, 4KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), Loop Guard, IVL, port-based VLAN, Voice VLAN, VLAN trunking, Port Security, MAC address authentication, port isolation, GVRP, ARP support, Guest VLAN, PPPoE relay, CPU protection, QoS, Storm Control, Layer 2 switching, IGMP snooping, IGMP filtering, static multicast routing, IGMP throttling, LLDP, LLDP-MED, DHCP Option 82, DHCP relay, DHCPv4 client, DHCPv6 client, DAD, NebulaFLEX support, NTP server, port mirroring, policy-based prioritisation, policy based rate limiting |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+4 x 10Gbit LAN SFP+ uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Localisation | United Kingdom |
| Compliant Standards | LVD, BSMI, EMC, FCC Part 15 A, RoHS |
| Included Accessories | Power cable, rack mount kit |
| MTBF | 562,941 hours |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 452.6 Watt |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 44 cm |
| Height | 4.3 cm |
| Weight | 3.6 kg |
| Depth | 27 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 50.8 cm |
| Shipping Height | 9 cm |
| Shipping Depth | 39.4 cm |
| Shipping Weight | 5.13 kg |
