Eaton 5SC 750i - UPS - 525 Watt - 750 VA

5SC750IBS - 3553340620409

Brand: Eaton
Product code: 5SC750IBS
SKU: WVICWMENBX4QG
EAN/GTIN: 3553340620409

UPS
AC 220/230/240 V
525 Watt
750 VA
1-phase
7 Ah
RS-232, USB
output connectors: 6
black
Weight: 11.86 KG

€369.19 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

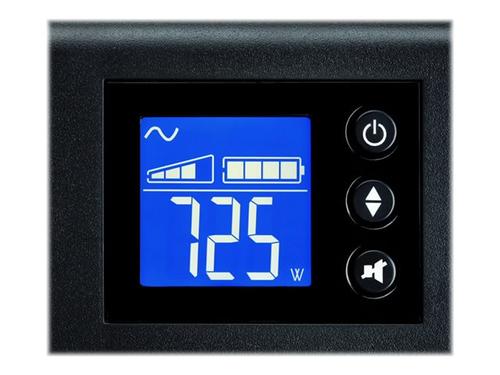

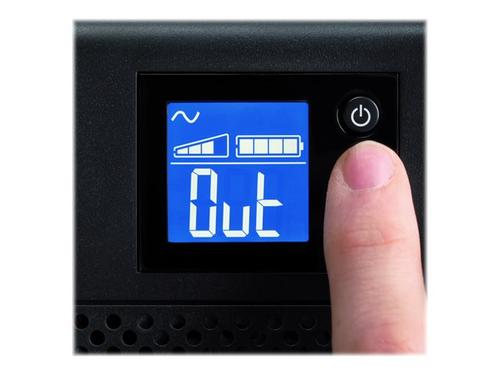

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing the range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment.

Description

Efficient management

Equipped with both USB and RS-232 interfaces, the Eaton 5SC UPS allows for seamless management and monitoring, ensuring your power backup system is always optimized for performance.

Reliable power protection

Featuring line interactive UPS technology, the Eaton 5SC provides reliable power protection and battery backup, safeguarding your equipment from power disturbances.

Specifications

General

Colour Black

Device Type UPS - external

Expansion / Connectivity

Interfaces 1 x management (USB) - 4 pin USB Type B1 x management (RS-232) - RJ-45

Manufacturer Warranty

Service & Support Limited warranty - 2 yearsLimited warranty - batteries - 2 years

Networking

Remote Management Interface RS-232, USB

Miscellaneous

Features Advance Battery Management (ABM), LCD display, deep discharge protection

Compliant Standards UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2

Included Accessories BS cord 10A

Cables Included USB cable2 x power cable (IEC)Serial cable

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 35 °C

Humidity Range Operating 0 - 85%

Battery

Quantity 2

Technology Lead Acid

Voltage Provided 12 V

Capacity 7 Ah

Run Time (Up To) 5 min at full load13 min at half load9 min at 70% load

Power Device

Input Voltage AC 220/230/240 V

UPS Technology Line interactive

Output Waveform Sinewave

Efficiency 96%

Input Voltage Range AC 184 - 276 V

Circuit Protection Circuit breaker

Output Voltage AC 220-240 V

Power Capacity 525 Watt / 750 VA

Input Wiring 1-phase

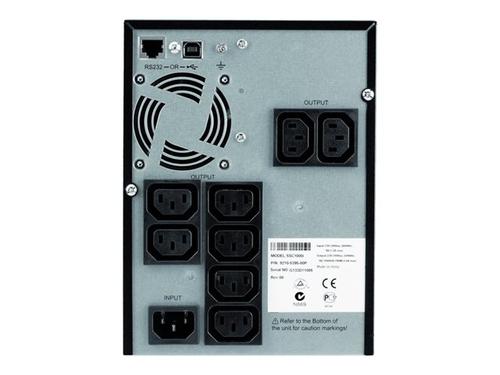

Input Connectors 1 x power IEC 60320 C14

Power Output Connectors Details 6 x power IEC 60320 C13

Frequency Required 45 - 55 / 55 - 65 Hz

Dimensions & Weight

Width 24 cm

Depth 48 cm

Weight 11.5 kg

Height 31 cm
