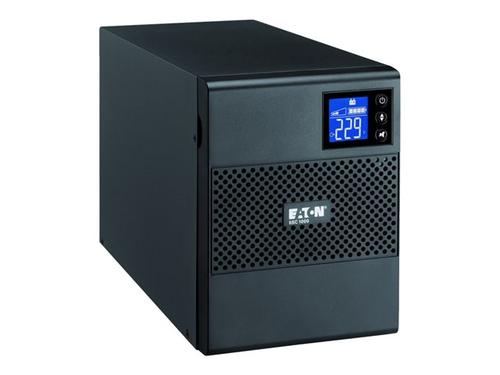

Eaton 5SC 750i - UPS - 525 Watt - 750 VA
Eaton 5SC 750i - UPS - 525 Watt - 750 VA
- Brand
- Eaton
- Product code
- 5SC750IBS
- SKU
- WVICWMENBX4QG
- EAN/GTIN
- 3553340620409
- UPS
- AC 220/230/240 V
- 525 Watt
- 750 VA
- 1-phase
- 7 Ah
- RS-232, USB
- output connectors: 6
- black
- Weight: 11.86 KG
€354.93
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

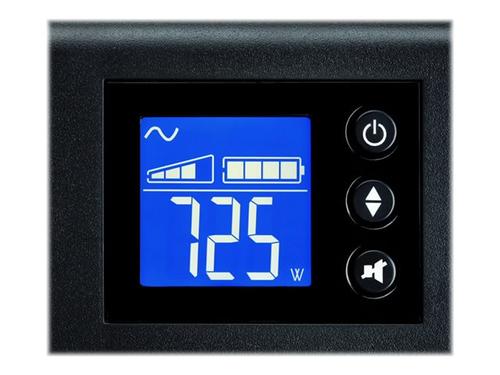

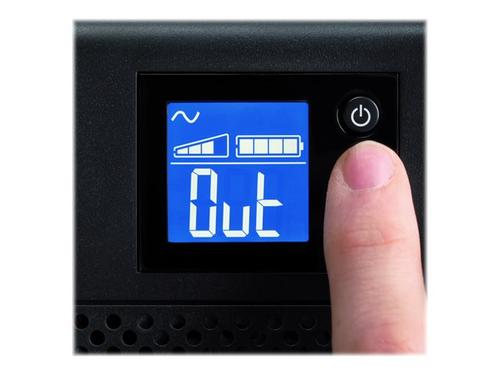

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing the range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment.
Description
Efficient management
Equipped with both USB and RS-232 interfaces, the Eaton 5SC UPS allows for seamless management and monitoring, ensuring your power backup system is always optimized for performance.
Reliable power protection
Featuring line interactive UPS technology, the Eaton 5SC provides reliable power protection and battery backup, safeguarding your equipment from power disturbances.
| General | |
|---|---|
| Colour | Black |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B1 x management (RS-232) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 yearsLimited warranty - batteries - 2 years |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Miscellaneous | |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection |
| Compliant Standards | UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2 |
| Included Accessories | BS cord 10A |
| Cables Included | USB cable2 x power cable (IEC)Serial cable |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 0 - 85% |
| Battery | |
| Quantity | 2 |
| Technology | Lead Acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 5 min at full load13 min at half load9 min at 70% load |
| Power Device | |
| Input Voltage | AC 220/230/240 V |
| UPS Technology | Line interactive |
| Output Waveform | Sinewave |
| Efficiency | 96% |
| Input Voltage Range | AC 184 - 276 V |
| Circuit Protection | Circuit breaker |
| Output Voltage | AC 220-240 V |
| Power Capacity | 525 Watt / 750 VA |
| Input Wiring | 1-phase |

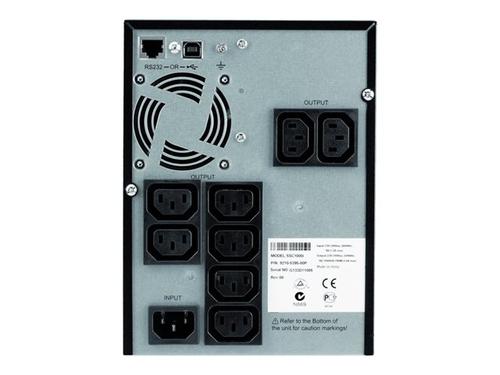

| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 |
| Frequency Required | 45 - 55 / 55 - 65 Hz |
| Dimensions & Weight | |
| Width | 24 cm |
| Depth | 48 cm |
| Weight | 11.5 kg |
| Height | 31 cm |
