Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA
Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA
- Brand
- Eaton
- Product code
- ELP850IEC
- SKU
- RACLTEW8ANS3Y
- EAN/GTIN
- 743172437648
- UPS
- AC 230 V
- 510 Watt
- 850 VA
- 9 Ah
- USB
- output connectors: 4
- 2U
- 19"
- black
- Weight: 8.20 KG
€327.93
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

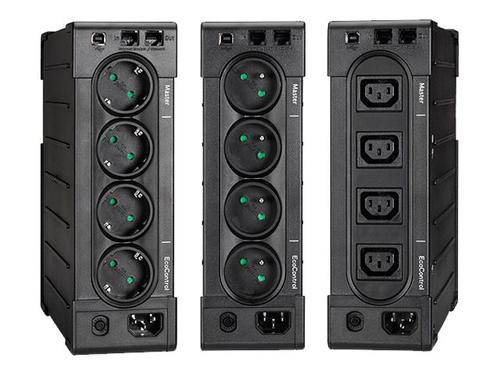

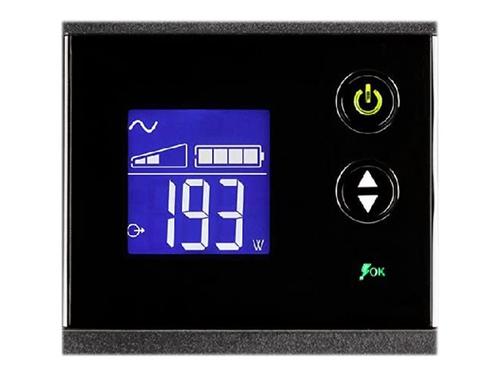

The Eaton Ellipse PRO 850, 850VA, is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features a LCD display for real time status and measurements, 4 outlets ( 3 with battery backup and lightning protection and one with lightning protection.

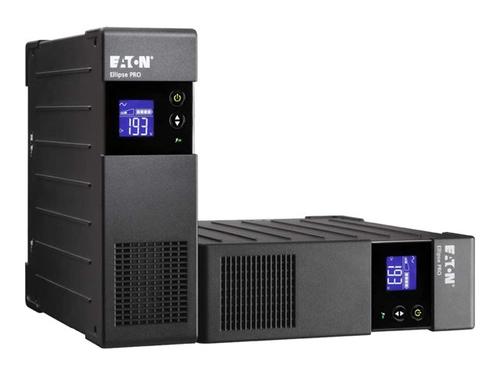

This unit includes Eco Control power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
| General | |
|---|---|
| Colour | Black |
| Rack Size | 19" |
| Height (Rack Units) | 2U |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 yearsLimited warranty - batteries - 3 years |
| Networking | |
| Remote Management Interface | USB |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Cables Included | USB cable - external |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 |
| Features | Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets |
| Software / System Requirements | |
| Software Included | Eaton UPS Companion |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 0 - 85% |
| Battery | |
| Technology | Lead Acid |
| Capacity | 9 Ah |
| Run Time (Up To) | 9 min at half load1 min at full load |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Frequency Provided | 50/60 Hz |
| Input Voltage | AC 230 V |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Circuit Protection | Circuit breaker |
| Power Capacity | 510 Watt / 850 VA |
| Input Voltage Range | AC 165 - 285 V |
| Input Voltage Range (Adjustable) | AC 150 - 285 V |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output Voltage | AC 220/230/240 V + 15% / - 20% - 50/60 Hz |
| Power Output Connectors Details | 3 x power IEC 60320 C13 (UPS and surge)1 x power IEC 60320 C13 (surge) |
| Dimensions & Weight | |
| Height | 26 cm |
| Depth | 28.5 cm |
| Width | 8.2 cm |
| Weight | 7.3 kg |
