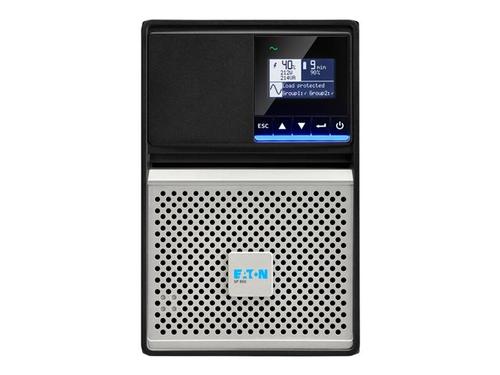

Eaton 5P 850i - Gen 2 - UPS - tower - 680 Watt - 850 VA
- Brand
- Eaton
- Product code
- 5P850IG2BS
- SKU
- 1RQF398H06679
- EAN/GTIN
- 3553340710438
- Gen 2
- UPS
- tower
- AC 200/208/220/230/240 V
- 680 Watt
- 850 VA
- 1-phase
- 7 Ah
- RS-232, USB
- output connectors: 6
- black/silver
- Weight: 11.78 KG
Product Info
Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.
Description
Manageability
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
| General | |
|---|---|
| Device Type | UPS - external |
| Colour | Black/silver |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Communication slot |
| Interfaces | 1 x EPO (emergency power off) - terminal block1 x management (USB)1 x management (RS-232) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - electrical components and functions - 3 yearsLimited warranty - batteries - 2 years |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Miscellaneous | |
| Cables Included | USB cable - external2 x power cable (IEC) - externalAC input cable (BS 1363) - external |
| Features | User-replaceable batteries, Advance Battery Management (ABM), Human Interface Device (HID) support, battery self-diagnosis, deep discharge protection, LCD display, automatic shut down |
| Compliant Standards | LVD, EMC, RoHS, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC 62040-3, EN 62040-3, UL 1778, CSA 22.2, UKCA, CM, UKR, KCC, cTUVus, BIS |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 35 dB |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Battery | |
| Quantity | 2 |
| Technology | Lead Acid |
| Voltage Provided | 12 V |
| Capacity | 7 Ah |
| Features | Maintenance free |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Voltage | AC 200/208/220/230/240 V |
| UPS Technology | Line interactive |
| Output Waveform | Sinewave |
| Input Voltage Range | AC 160 - 294 V |
| Input Voltage Range (Adjustable) | AC 150 - 294 V |
| Frequency Required | 47 - 70 Hz |
| Efficiency | 98% |
| Output Voltage | AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 |
| Power Capacity | 680 Watt / 850 VA |
| Dimensions & Weight | |
| Depth | 34.5 cm |
| Width | 15 cm |
| Height | 23.3 cm |
| Weight | 10.46 kg |
