Eaton Ellipse PRO 1600 - UPS - 1000 Watt - 1600 VA
- Brand
- Eaton
- Product code
- ELP1600IEC
- SKU
- E26H0UADAX9UW
- EAN/GTIN
- 743172438256
- UPS
- AC 230 V
- 1000 Watt
- 1600 VA
- 9 Ah
- USB
- output connectors: 8
- 2U
- 19"
- Weight: 13.00 KG
Product Info

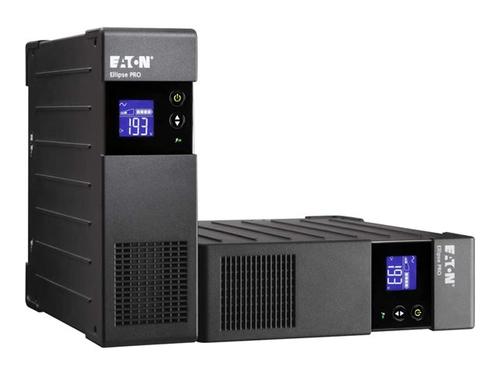

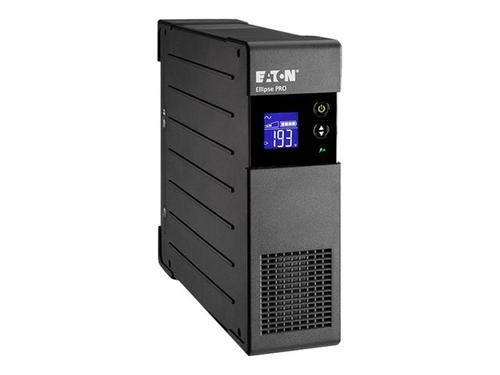

The Eaton Ellipse PRO 1600, 1600 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges.

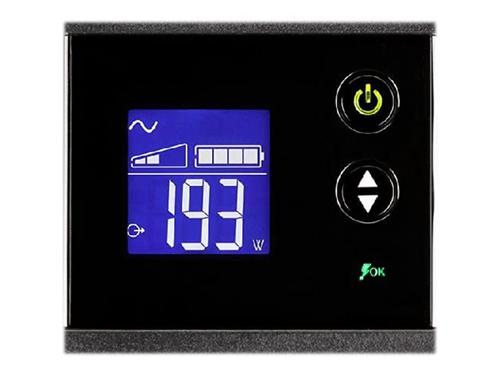

The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
| General | |
|---|---|
| Rack Size | 19" |
| Height (Rack Units) | 2U |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 yearsLimited warranty - batteries - 3 years |
| Networking | |
| Remote Management Interface | USB |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Cables Included | USB cable - external |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 |
| Features | Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets |
| Software / System Requirements | |
| Software Included | Eaton UPS Companion |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 0 - 85% |
| Battery | |
| Quantity | 2 |
| Technology | Lead Acid |
| Capacity | 9 Ah |
| Run Time (Up To) | 9 min at half load5 min at 70% load |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Frequency Provided | 50/60 Hz |
| Input Voltage | AC 230 V |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Circuit Protection | Circuit breaker |
| Input Voltage Range | AC 165 - 285 V |
| Input Voltage Range (Adjustable) | AC 150 - 285 V |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Power Capacity | 1000 Watt / 1600 VA |
| Input Connectors | 1 x power IEC 60320 C14 |

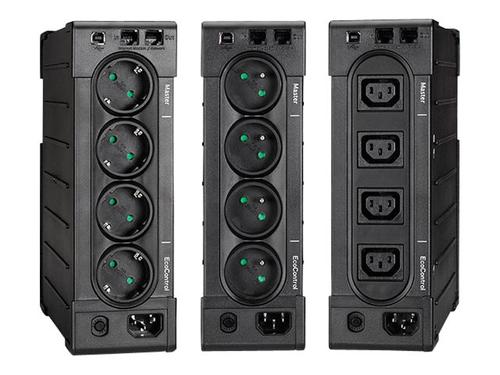

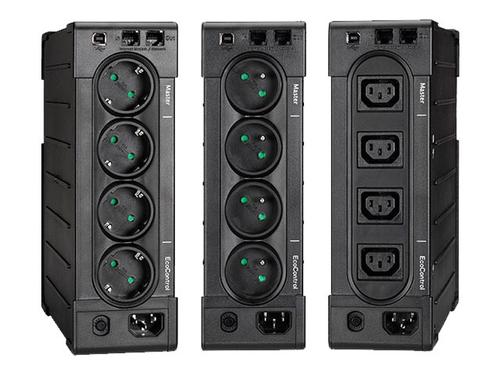

| Power Output Connectors Details | 4 x power IEC 60320 C13 (UPS and surge)4 x power IEC 60320 C13 (surge) |
| Output Voltage | AC 220/230/240 V + 15% / - 20% - 50/60 Hz |
| Dimensions & Weight | |
| Weight | 11.3 kg |
| Height | 27.5 cm |
| Depth | 39 cm |
| Width | 8.2 cm |
