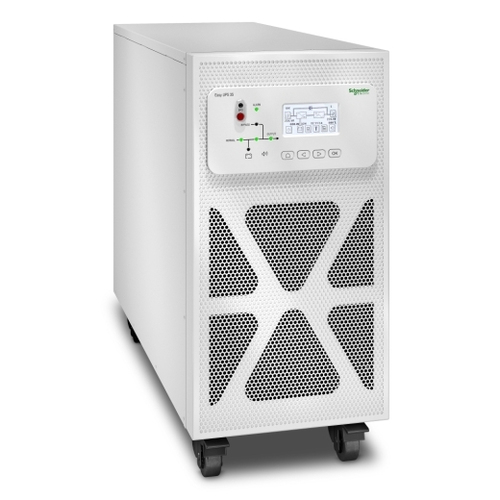

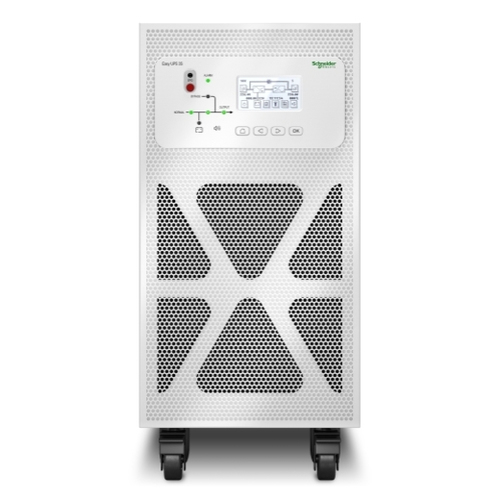

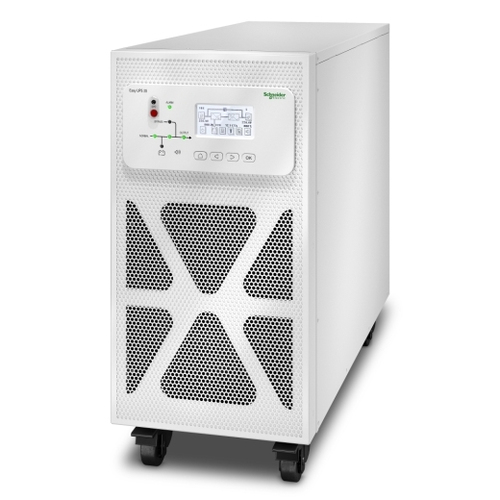

APC E3SUPS10K3I uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
- Brand
- APC
- Product code
- E3SUPS10K3I
- SKU
- 6O48PXEBT5N86
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- White
Product Info
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Maximum current | 18 A |
| Efficiency | 94.4% |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Noise level | 60 dB |
| Design | |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 700 mm |
| Height | 530 mm |
| Weight | 36 kg |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 857 mm |
| Package height | 772 mm |
| Package weight | 50 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
