APC BGM2200-GR uninterruptible power supply (UPS)

Features

UPS topology Line-Interactive

Output power capacity 2.2 kVA

Output power 1320 W

Waveform Sine

Input operation voltage (min) 168 V

Input operation voltage (max) 302 V

Input frequency 50/60 Hz

Output operation voltage (max) 230 V

Output frequency 60 Hz

Automatic Voltage Regulation (AVR) Yes

Maximum current 12 A

Surge energy rating 1080 J

Response time 8 ms

EMI/RFI noise filtering Yes

Noise level 45 dB

Surge protection Yes

Surge protection features Network

Audible alarm(s) Yes

Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm

Ports & interfaces

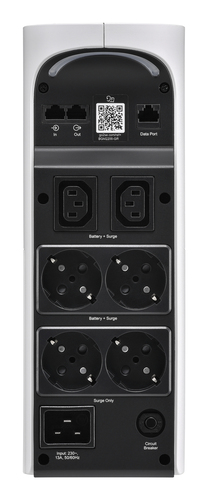

AC outlet types C13 coupler

AC outlets quantity 6 AC outlet(s)

USB port Yes

Serial interface type RJ-45

Cabling technology 10/100/1000Base-T(X)

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 24 V

Number of batteries supported 1

Battery life (max) 5 year(s)

Battery recharge time 16 h

Automatic battery test Yes

Cold start Yes

Design

Form factor Tower

Rack capacity 0U

Cable length 1.52 m

Product colour White

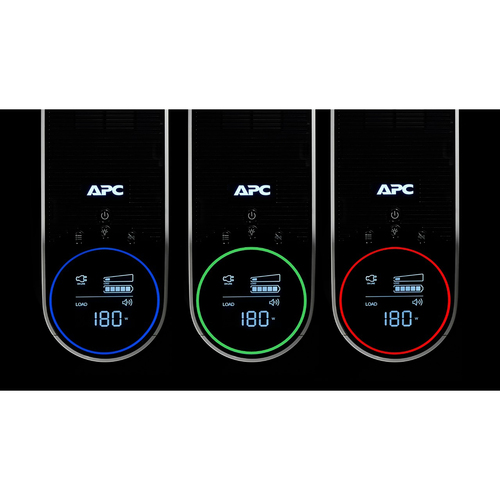

Display type LCD

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3048 m

Non-operating altitude 0 - 3048 m

Certificates

Certification IEC 62040-1-1 IEC 62040-2

Packaging content

Cables included USB cable

Manual Yes

Sustainability

Sustainability certificates Green Premium

Weight & dimensions

Width 104.1 mm

Depth 408.9 mm

Height 292.1 mm

Weight 12.3 kg

Packaging data

Package width 355 mm

Package depth 480 mm

Package height 155 mm

Package weight 14.5 kg
