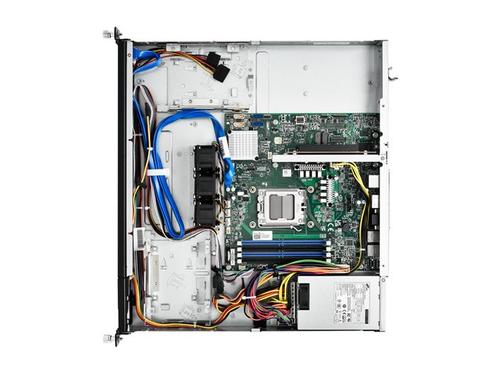

MiTAC B8016G40V4 - rack-mountable no CPU - SSD 4, SSD 2
- Brand
- MITAC
- Product code
- B8016G40V4
- SKU
- IYU45GVURKEUE
- EAN/GTIN
- 635872058615
- Server
- rack-mountable 1U
- 1-way
- no CPU
- SATA
- hot-swap 2.5", 3.5" bay(s)
- SSD 4, SSD 2
- AST2600
- Gigabit Ethernet
- no OS
- monitor: none
- Weight: 13.60 KG
Product Info
The Mio MiTAC B8016G40V4 is a rack-mountable server designed for performance and scalability. With four hot-swap bays capable of accommodating both 2.5" and 3.5" SATA drives, users can manage storage needs without downtime. The internal configuration includes four additional drive bays, allowing for expandability, suitable for businesses that require adaptable storage solutions.
Equipped with a PCIe 5.0 x16 expansion slot, the server offers multiple connectivity options, including three Gigabit Ethernet ports, ensuring seamless network integration. Advanced thermal management is facilitated by three built-in fans, while sensors monitor temperature and voltage, contributing to reliability. Furthermore, with a power supply rated for 300 W and 80 PLUS Gold certification, the B8016G40V4 ensures efficient energy consumption without compromising on power.
Description
Expandable storage capacity
This server supports up to four hot-swap bays for 2. 5" and 3. 5" SATA drives along with four internal bays, allowing for flexible data storage solutions.
Efficient performance management
Temperature and voltage sensors help monitor system performance and ensure optimal operating conditions, contributing to reliability.
Robust connectivity options
With three Gigabit Ethernet ports and various interface types including USB 3. 1, USB 3. 2, and VGA, this server ensures an adaptable network configuration.
Active cooling system
Three built-in fans maintain proper airflow and heat dissipation, which is essential for stable operation during high-performance tasks.
Energy-efficient power supply
Featuring a 300 W power supply with 80 PLUS Gold certification, this server offers high efficiency reducing energy consumption while maintaining performance.
| General | |
|---|---|
| Type | Server |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| Server Scalability | 1-way |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 3 x fans |
| Sensors | Temperature sensor, voltage sensor |
| Expansion / Connectivity | |
| Slots | 1 PCIe 5.0 x16 |
| Interfaces | 1 x USB 3.1 Gen 14 x USB 3.2 Gen 13 x VGA - DB-153 x LAN (Gigabit Ethernet) - RJ-45 |
| RAM | |
| Installed Size | 192 GB (max) |
| Slots | 4 (Total) / 4 (empty) |
| Technology | DDR5 SDRAM |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Ethernet Ports | 3 x Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2600 |
| Ethernet Controller | Realtek RTL8211F |
| Miscellaneous | |
| Compliant Standards | FCC SDOC Class A, DOC-A, CB, LVD, RCM, VCCI, BSMI, RoHS |
| Power | |
| Device Type | Power supply |
| Power Provided | 300 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | VGA |
| Graphics Processor | ASPEED AST2600 |
| Hard Drive | |
| Capacity | 4 |
| Type | SSD - hot-swap |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Depth | 40 cm |
| Height | 4.32 cm |
| Width | 43.85 cm |
| Hard Drive (2nd) | |
| Capacity | 2 |
| Features | NVM Express (NVMe) |
| Type | SSD - M.2 |
| Processor / Chipset | |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU | No CPU |
| CPU Socket | Socket AM5 |
| Motherboard Name | S8016GM2NR-1U |
