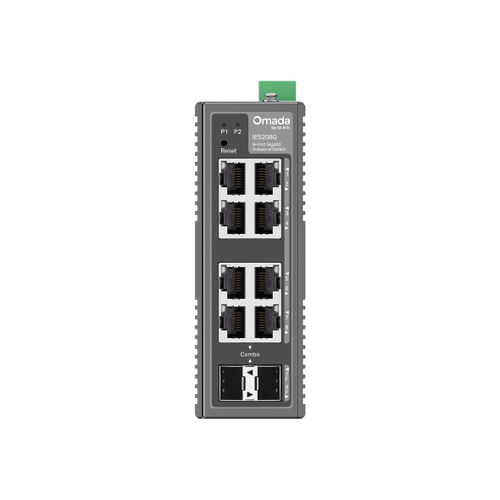

TP-Link Omada IES208G network switch

IES208G - 1210002602105

TP-Link Omada IES208G network switch Managed Gigabit Ethernet (10/100/1000)

Brand: TP-Link
Product Family: Omada
Product code: IES208G
SKU: 8NFVBE27LVPWT
EAN/GTIN: 1210002602105

8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
Abundant Features: VLAN, QoS, and STP/RSTP
Centralized Cloud Management via the Web or Omada App†

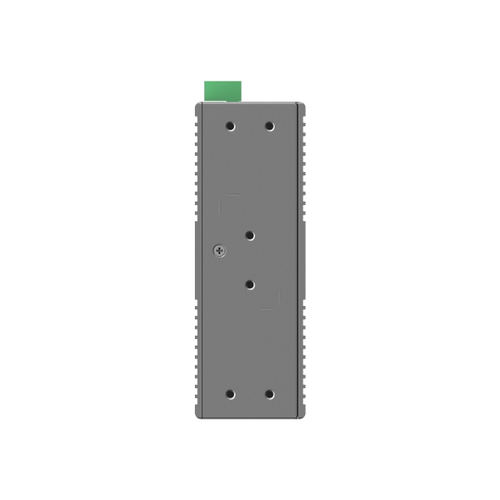

Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

€143.78 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch

TP-Link Omada IES208G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9.6 - 60 V. Wall mountable

Enhanced Networking Stability and Security

1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.

Easy Operation and Maintenance with Omada’s Free Cloud Management

Specifications

Management features

Switch type Managed

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 6

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity 2

Network

Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

10G support No

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

Auto-negotiation Yes

Data transmission

Switching capacity 16 Gbit/s

Forwarding rate 11.9 Mpps

MAC address table 8000 entries

Jumbo frames support Yes

Jumbo frames 15000

Security

IGMP snooping Yes

Static port security Yes

Design

Wall mountable Yes

DIN rail mounting Yes

Power

Power source DC

Redundant power supply (RPS) support Yes

DC input voltage 9.6 - 60 V

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Weight & dimensions

Width 129 mm

Depth 95 mm

Height 45 mm
