StarTech.com Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, C-Clamp/Grommet, Top-Down Installation, Toolless Adjustment
- Brand
- STARTECH
- Product code
- ARMPIVOT2
- SKU
- 4PTCQ1NU4D5HX
- EAN/GTIN
- 0065030921695
- DESK MOUNT MONITOR ARM: Single monitor mount supports up to a 40-inch display and 17.6lb (8kg); VESA plate supports 75x75/100x100mm patterns; Articulating and height adjustable steel arm; C-clamp/grommet mounting
- EASY INSTALLATION: Unique top-screw desk clamp for hassle-free installation without the need to go under the desk; Interchangeable C-clamp/grommet mount for desks up to 2" (5cm) thick; Includes tools for arm tension adjustment; Quick-release VESA plate
- MECHANICAL SPRING ONE-TOUCH ADJUSTMENT: Full-motion arm features a high-quality mechanical spring for smooth and effortless one-touch motion; Mechanical springs are more robust and resistant to wear over time compared to gas springs; Backed for 5 years
- RANGE OF MOTION: Toolless adjustments of +/-180° swivel, +/-90° tilt, and +/-90° screen rotation for portrait/landscape orientations; Max height 24.4" (62cm); Max arm extension 23.1" (59.4cm) from the pole; Adjustable height along the 11.1" (28.3cm) pole
- ORGANIZED WORKSPACE: Cable clips and a cable management channel under the arm keeps cables out of sight and help maintain a tidy setup; Keep the hex keys within arm's reach using the tool storage clip located at the back of the base
Product Info

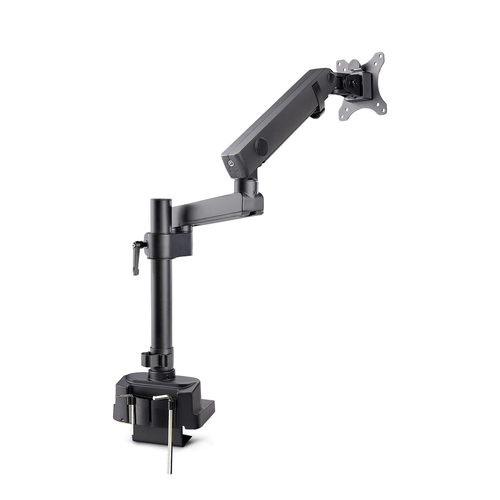

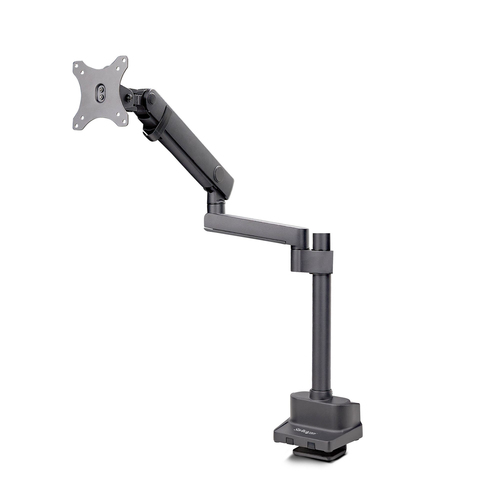

Monitor desk mount with support for up to 40" monitor with height adjustable spring arm
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

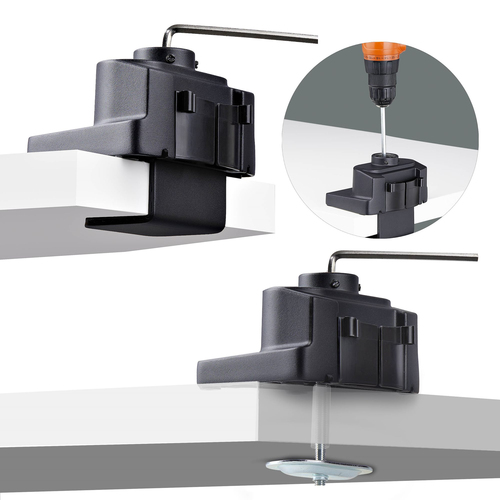

Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

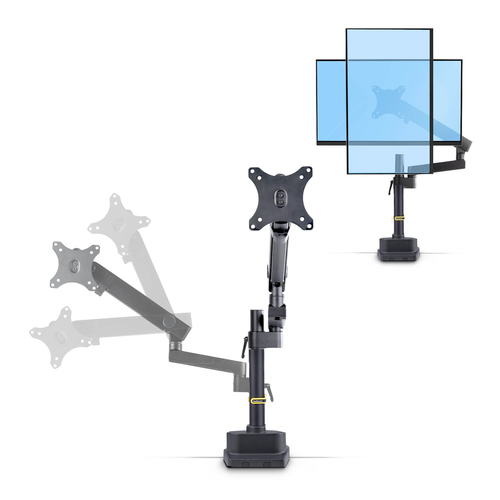

Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

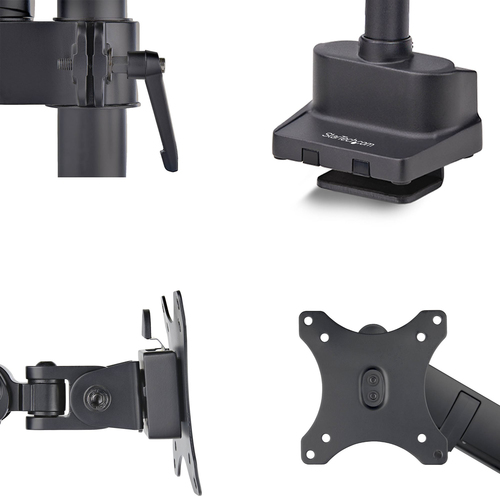

Range of Motion
Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
| Mounting | |
|---|---|
| Maximum weight capacity | 8 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 101.6 cm (40") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 180 - 620 mm |
| Depth adjustment range | 419 - 594 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Housing material | Plastic, Steel |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 703 mm |
| Height | 607 mm |
| Weight | 3.6 kg |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 240 mm |
| Package height | 117 mm |
| Package weight | 3.7 kg |

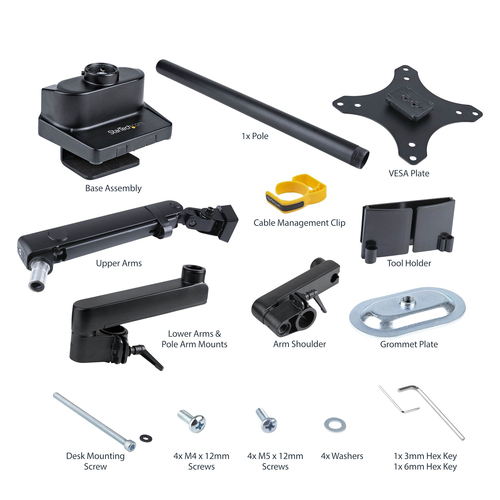

| Packaging content | |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Screws included | Yes |
| Number of screws | 9 |
| Number of washers included | 4 |
| Grommet plate included | Yes |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 4 pc(s) |
