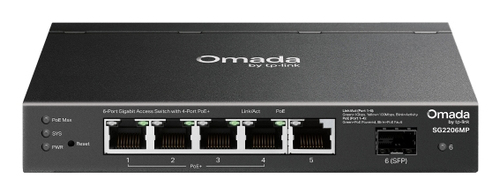

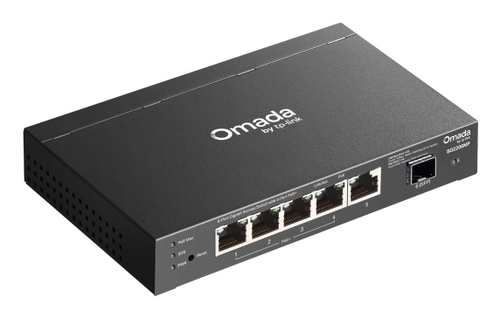

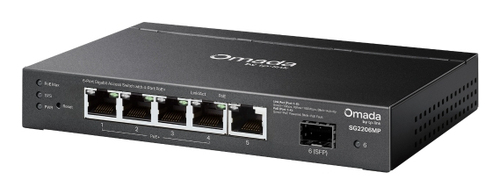

TP-Link SG2206MP network switch

SG2206MP - 1210002602419

TP-Link SG2206MP network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Brand: TP-Link
Product code: SG2206MP
SKU: ZLC747F05CHXK
EAN/GTIN: 1210002602419

5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
63W total PoE budget with up to 30W for each PoE+ port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping

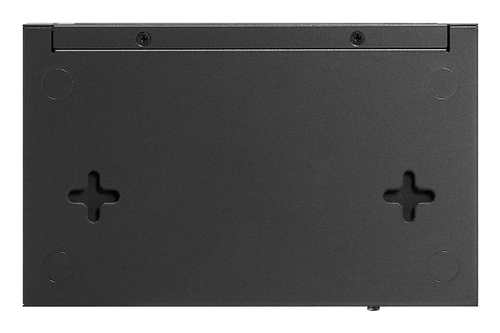

Durable metal casing and desktop/wall mounting design

€101.4 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

RJ-45, SFP, PoE+, 63W, 30W, 12Gbps

TP-Link SG2206MP. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5, Installed SFP modules quantity: 1. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting

Multiple Application Scenarios

Wi-Fi Coverage
Works with Access Points

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features

Switch layer L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 5

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 5

Installed SFP modules quantity 1

Network

Port mirroring Yes

Routing entries 230

Link aggregation Yes

Rate limiting Yes

Spanning tree protocol Yes

Active link detection Yes

VLAN support Yes

Data transmission

Switching capacity 12 Gbit/s

MAC address table 8000 entries

Jumbo frames support Yes

Jumbo frames 9

Packet buffer memory 4.1 MB

Security

DHCP features DHCP relay, DHCP server

IGMP snooping Yes

Loop protection Yes

Design

Rack mounting Yes

Stackable Yes

Power

Power source DC

Power supply included Yes

Number of power supply units 1

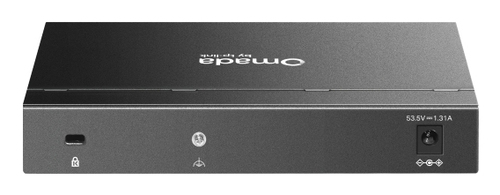

DC input voltage 53.5 V

Input current 1.31 A

Power consumption (max) 73.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 4

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 63 W

Weight & dimensions

Width 158 mm

Depth 100.7 mm

Height 25.4 mm
