Samsung QH115F-X

Display

Panel type VA

Display diagonal 2.92 m (115")

Display technology LCD

Display resolution 3840 x 2160 pixels

Display brightness 1000 cd/m²

HD type 4K Ultra HD

Touchscreen No

Native aspect ratio 16:9

Response time 6.5 ms

Contrast ratio (typical) 5500:1

Dynamic contrast ratio marketing name Mega Contrast

Viewing angle, horizontal 178°

Viewing angle, vertical 178°

Pixel pitch 0.63 x 0.63 mm

Colour saturation 93%

Horizontal scan range 15 - 135 kHz

Vertical scan range 24 - 120 Hz

Haze rate 25%

Pixel frequency (max) 1188 MHz

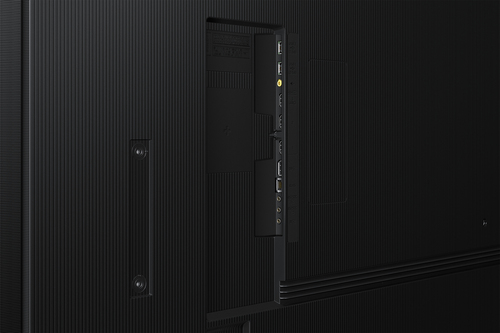

Ports & interfaces

HDMI ports quantity 3

HDMI version 2.1

DVI port No

DisplayPorts quantity 1

DisplayPort version 1.4

USB port Yes

USB ports quantity 2

USB connector type USB Type-A

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Wi-Fi Yes

RS-232C Yes

Remote (IR) input 1

Design

Product design Digital signage flat panel

Placement supported Indoor

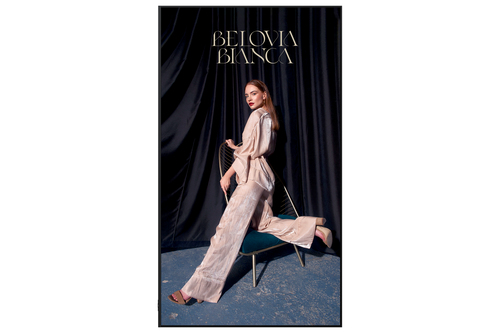

Orientation Horizontal/Vertical

Product colour Black

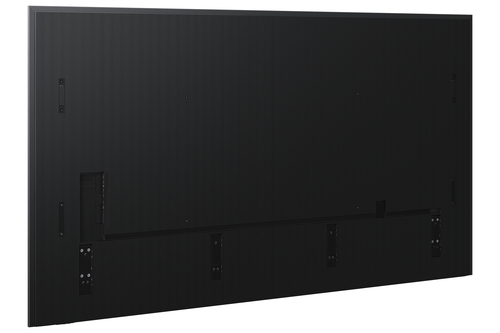

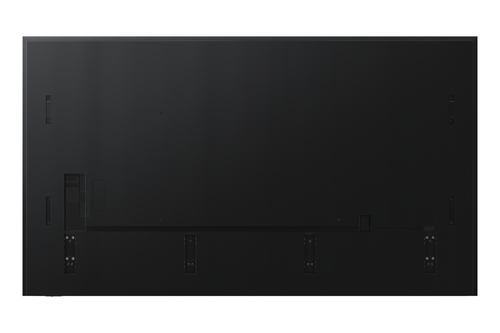

VESA mounting Yes

Panel mounting interface 1000 x 600 mm

Bezel type 3 Bezel-less

Performance

Purpose Retail

Operating hours (hours/days) 24/7

Power

Power consumption (typical) 836 W

Power consumption (standby) 0.5 W

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Computer system

Internal storage capacity 16 GB

Operating system installed Tizen

Operating system version 8.0

Weight & dimensions

Display width 2565.2 mm

Display depth 34.1 mm

Display height 1467.6 mm

Display weight 83.7 kg

Packaging data

Package width 2765 mm

Package depth 250 mm

Package height 1652 mm

Package weight 133.6 kg

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 20 - 95%

Technical details

Compliance certificates Electromagnetic Compatibility (EMC)

Other features

Audio output 1

Bluetooth Yes

RS-232 input ports 1

RS-232 output ports 1
