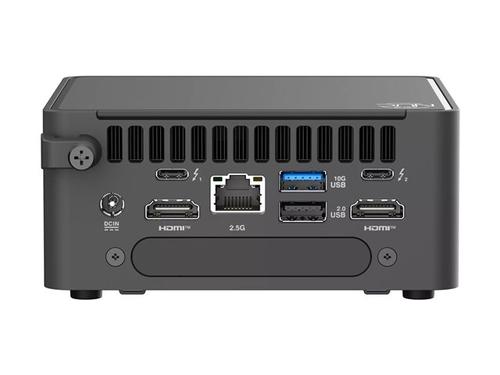

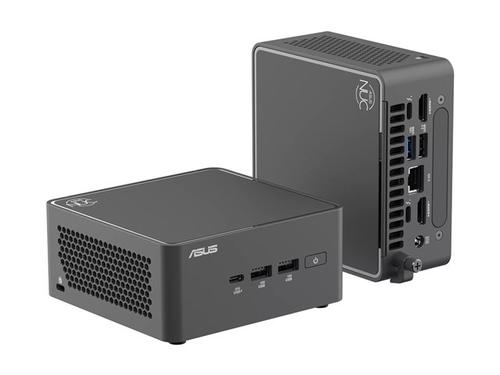

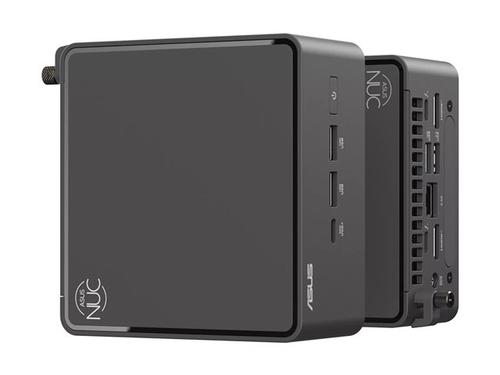

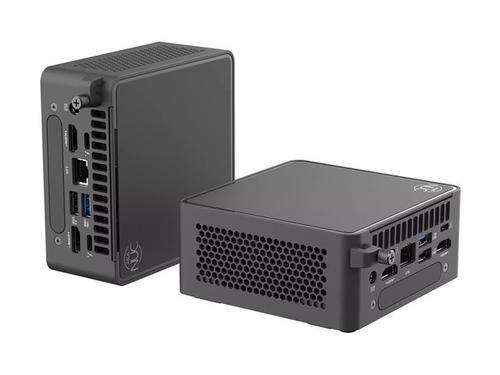

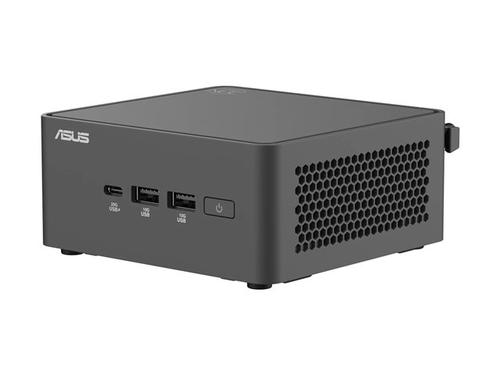

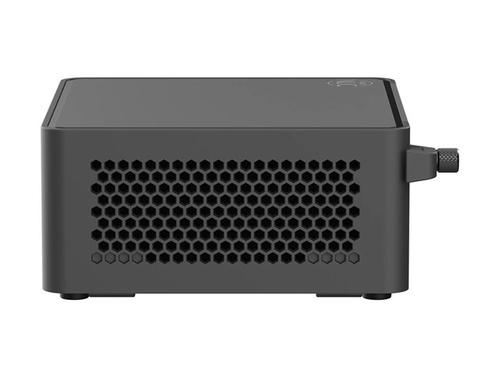

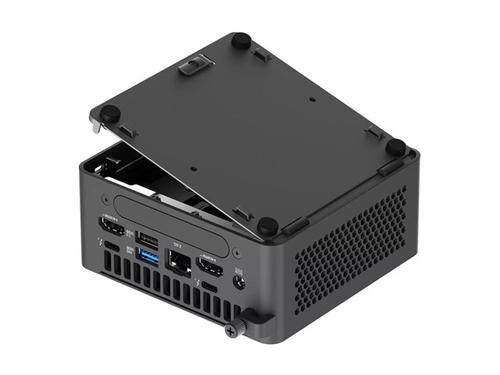

ASUS NUC 15 Pro Tall Kit RNUC15CRHV700003 - mini PC Core Ultra 7 265H 1.7 GHz - vPro - 0 GB - no HDD
- Brand
- Asus
- Product code
- 90AR00Q2-M000M0
- SKU
- V5R5XYJ4ZI7G9
- EAN/GTIN
- 4711387950159
- Barebone
- mini PC 1 x Core Ultra 7 265H / up to 5.3 GHz
- vPro
- RAM 0 GB
- Arc Graphics 140T
- IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4, Gigabit Ethernet, 2.5 Gigabit Ethernet
- black
- Weight: 1.28 KG
Product Info
The ASUS NUC 15 Pro Tall Kit is designed for users seeking a compact and powerful computing solution. Featuring an ultra small form factor, this mini PC is equipped with a Core Ultra 7 processor that offers performance with a clock speed of 1.7 GHz and a max turbo speed of 5.3 GHz. With 16 cores, the processor ensures efficient multitasking and smooth operation for demanding applications.
The system supports networking capabilities including Wi-Fi 7 and Bluetooth 5.4, allowing for fast and reliable connections. The inclusion of Intel Arc Graphics 140T enhances graphics performance for a variety of tasks. The device has connectivity options with USB 2.0, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and Thunderbolt 4 ports, providing users with flexibility for expansion and peripheral connection. Additionally, the ASUS NUC 15 Pro Tall Kit allows for upgrades with two empty RAM slots and one available expansion bay.
Description
Powerful processing capabilities
The Intel Core Ultra 7 processor operating at 1. 7 GHz with a maximum turbo speed of 5. 3 GHz offers robust performance for demanding tasks.
Extensive connectivity options
Includes multiple ports such as USB 2. 0, USB 3. 2, USB-C, and Thunderbolt 4 for versatile connectivity and expansion.
Advanced networking support
Supports Wi-Fi 7 and Bluetooth 5. 4 for high-speed wireless connections, ensuring smooth data transmission and communication.
Flexible upgrade potential
With two empty RAM slots and an internal expansion bay, the mini PC allows for easy hardware upgrades to meet evolving needs.
Optimized graphics performance
Equipped with Intel Arc Graphics 140T, the device delivers enhanced graphics capabilities suitable for a variety of applications.
| General | |
|---|---|
| Colour | Black |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Platform Technology | Intel vPro Platform |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 22801 (total) / 1 (free) x M.2 Card - 2242 |
| Interfaces | 3 x USB 3.2 Gen 2 (2 front, 1 rear)2 x Thunderbolt 4 (2 rear)2 x HDMI (2 rear)1 x LAN (2.5Gigabit Ethernet) (1 rear)1 x USB-C 3.2 Gen 2x2 (1 front)1 x USB 2.0 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - pick-up and return |
| RAM | |
| Slots | 2 (Total) / 2 (empty) |
| Installed Size | 0 GB (installed) / 96 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Networking | |
| Wireless LAN Supported | Yes |
| Ethernet Controller | Intel I226-LM |
| Wireless NIC | Intel WI-FI 7 BE201 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4, Gigabit Ethernet, Fast Ethernet, Ethernet, 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Storage Controller | |
| Channel Qty | 1 |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | HDMI |
| Graphics Processor | Intel Arc Graphics 140T - up to 75 TOPS |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Height | 5.4 cm |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Weight | 600 g |
| Processor / Chipset | |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Number of Cores | 16-core |
| Processor Main Features | Intel Smart Cache |
| Clock Speed | 1.7 GHz (P-core) / 700 MHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 2) 265H |
| Max Turbo Speed | 5.3 GHz (P-core) / 4.5 GHz (E-core) |
| Neural Processor Unit (NPU) | |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Neural Processor Unit (NPU) | Intel AI Boost |
| AI Datatype Support on NPU | INT8 |
| Total Processor Performance Up To (TOPS) | 97 TOPS |
| NPU Performance Up To (TOPS) | 13 TOPS |
| AI Software Frameworks Supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, WindowsML |
