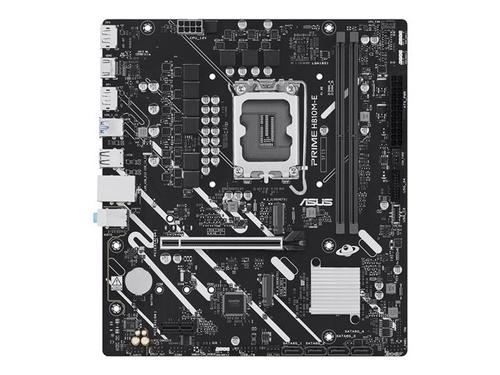

ASUS PRIME H810M-E-CSM - motherboard - micro ATX - LGA1851 Socket - H810
- Brand
- Asus
- Product code
- 90MB1N20-M0EAYC
- SKU
- I06LZMFG5IL7M
- EAN/GTIN
- 4711636188203
- Motherboard
- micro ATX
- LGA1851 Socket
- H810 Chipset
- USB-C 3.2 Gen 1, USB 3.2 Gen 1
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
- ASUS Corporate Stable Model (CSM)
- Weight: 0.86 KG
Product Info
The ASUS PRIME H810M-E-CSM motherboard offers a foundation for any build, accommodating Intel Core Ultra processors and supporting DDR5 SDRAM with speeds up to 6400 MT/s. With a micro ATX form factor, this motherboard provides space management while offering essential features like dual-channel memory architecture and Intel Extreme Memory Profiles (XMP) for improved performance.
Equipped with multiple expansion slots including PCIe 4.0, two M.2 slots, and four SATA-600 ports for storage options, the ASUS PRIME H810M-E-CSM connects seamlessly with a range of peripherals through multiple USB configurations including USB 3.2 Gen 1 and USB-C. High definition audio support ensures an immersive sound experience, making this motherboard a choice for building a versatile computer system.
Description
Versatile expansion slots
The ASUS PRIME H810M-E-CSM motherboard features two M. 2 slots and multiple PCIe 4. 0 slots, allowing users to expand their system capabilities with ease.
Robust audio support
Offering high definition audio with 8-channel output, this motherboard ensures a comprehensive sound experience suitable for gaming and multimedia applications.
Efficient cooling features
The aluminum heatsink design and chipset heatsink work in tandem to maintain optimal temperatures during high-performance tasks, preventing overheating.
User-friendly design
With features like ASUS Q-Design and ASUS EZ DIY, building and upgrading the system becomes a hassle-free experience for users of all skill levels.
Advanced memory support
This motherboard supports dual-channel memory architecture and Intel Extreme Memory Profiles (XMP) to optimize memory performance and stability.
| General | |
|---|---|
| Max Processors Qty | 1 |
| Product Type | Motherboard - micro ATX |
| Processor Socket | LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Chipset Type | Intel H810 |
| Expansion / Connectivity | |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATAPCIe 4.0 -connectors: 2 x M.2 |
| Expansion Slots | 1 x CPU2 x DIMM 288-pin1 x PCIe 4.0 x161 x PCIe 4.0 x11 x M.2 socket (2280 M.2 slot)1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header2 x USB 3.2 Gen 1 - header2 x USB 2.0 - header1 x serial - header1 x audio - header1 x SPDIF out - header1 x SPI - header |
| Interfaces | 2 x USB 3.2 Gen 14 x USB 2.01 x HDMI2 x DisplayPort1 x LAN (Gigabit Ethernet)1 x audio line-in - mini-jack1 x audio line-out - mini-jack1 x microphone - mini-jack |
| Miscellaneous | |
| Width | 24.4 cm |
| Depth | 22.2 cm |
| Cables Included | 2 x Serial ATA cable |
| Pricing Type | ASUS Corporate Stable Model (CSM) |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| Included Accessories | IO shield, 1 x M.2 anchor, ACC Express Activation Key Card |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Features | |
| BIOS Type | AMI |
| Sleep / Wake Up | Wake on LAN (WOL) |
| BIOS Features | ASUS EFI BIOS, ASUS EZ Flash |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP) II, Intel Turbo Boost Max Technology 3.0, 6+1+1+1 Phase Power Design, Intel Turbo Boost Technology 2.0, chipset heatsink, ASUS EZ DIY, ASUS Aura Sync, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Dashboard, Q-LED Core, Q-Slot, aluminium heatsink design |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Registered or Buffered | Unbuffered |
| Max Size | 128 GB |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR5 |
| Bus Clock | 6400 MT/s |
