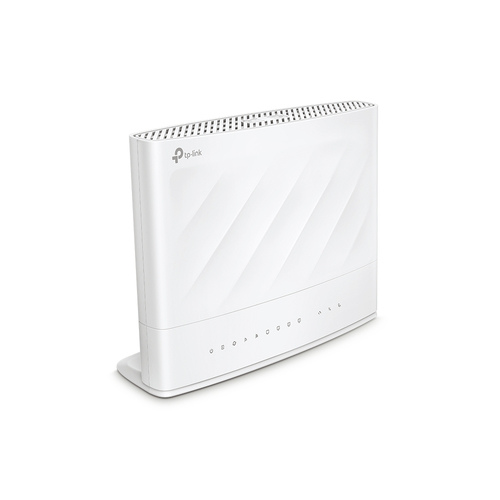

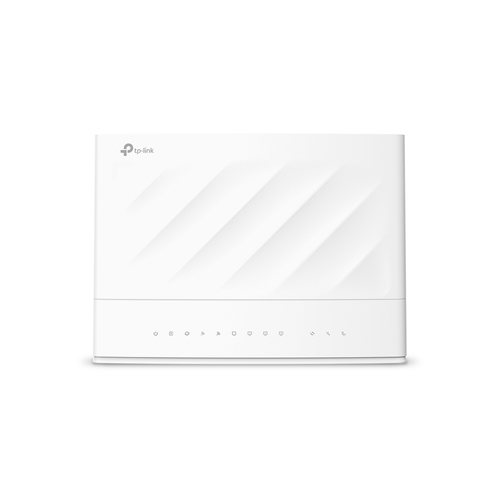

TP-Link VX230v wireless router

WAN connection

Ethernet WAN Yes

DSL WAN Yes

SIM card slot No

3G/4G USB modem compatibility No

WAN connection type RJ-11, RJ-45

Wireless LAN features

Wi-Fi band Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max) 1201 Mbit/s

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band) 574 Mbit/s

WLAN data transfer rate (second band) 1201 Mbit/s

Modulation 1024-QAM

Network

Ethernet LAN Yes

Ethernet LAN interface type Gigabit Ethernet

Ethernet LAN data rates 10,100,1000 Mbit/s

Cabling technology 10/100/1000Base-T(X)

Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Port forwarding Yes

Port triggering Yes

Dynamic DNS (DDNS) Yes

Wireless radio Yes

VPN tunnels quantity 16

VPN support OpenVPN, PPTP VPN, IPSec VPN

DSL features

ADSL Yes

ADSL2 Yes

ADSL2+ Yes

VDSL2 Yes

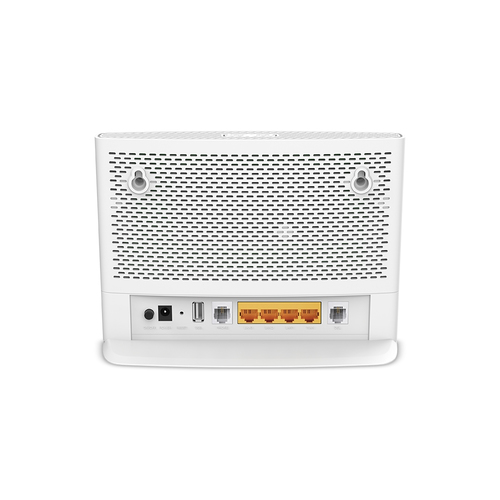

Ports & interfaces

Ethernet LAN (RJ-45) ports 4

USB port Yes

USB 2.0 ports quantity 1

RJ-11 ports quantity 2

DC-in jack Yes

Management features

Quality of Service (QoS) support Yes

Reset button Yes

WPS push button Yes

MU-MIMO technology Yes

Security

NAT functionality NAT Forwarding

Protocols

DHCP client Yes

DHCP server Yes

Supported network protocols IPv4, IPv6

Design

Product colour White

Wall mountable Yes

Indication light Yes

On/off switch Yes

Product type Tabletop router

Packaging content

Cables included LAN (RJ-45), Phone (RJ-11)

AC adapter included Yes

Quick installation guide Yes

Antenna

Antenna design Internal

Power

Power source type DC

Output voltage 12 V

Output current 2 A

External power adapter Yes

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 60 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

System requirements

Windows operating systems supported Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Linux operating systems supported Yes

Mac operating systems supported Yes

Mac compatibility Yes

Weight & dimensions

Width 199.7 mm

Depth 148.6 mm

Height 67.5 mm

Packaging data

Number of products included 1 pc(s)
