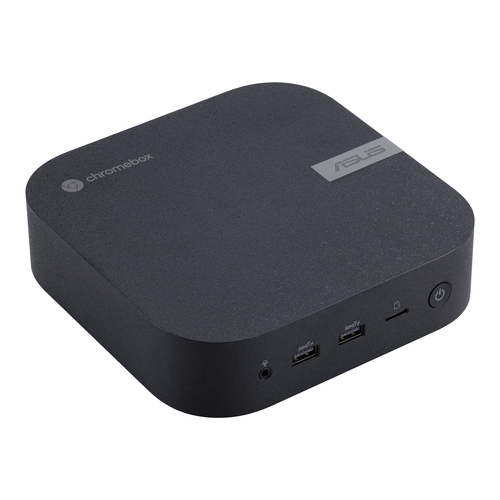

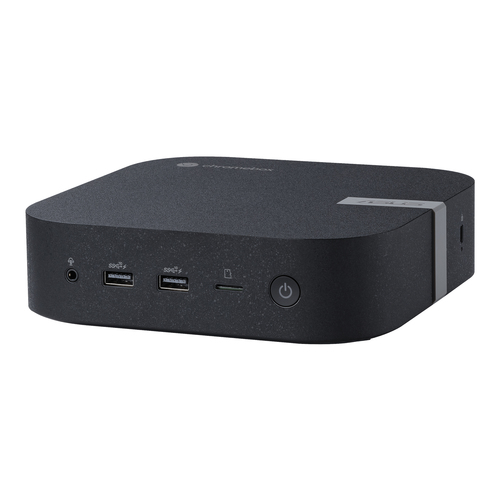

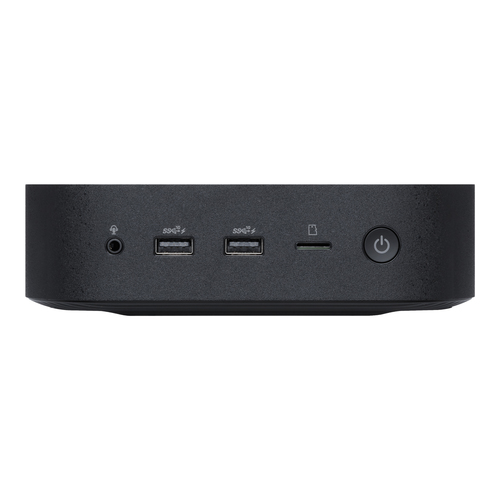

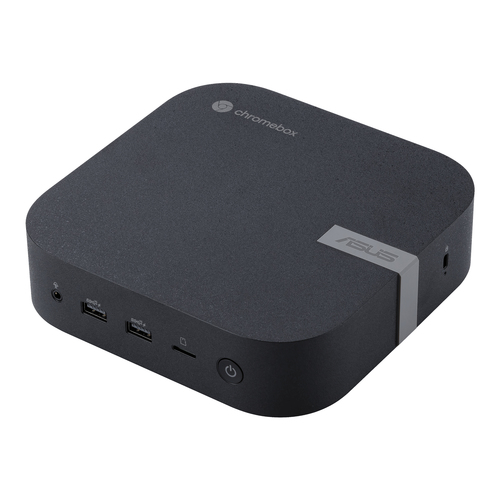

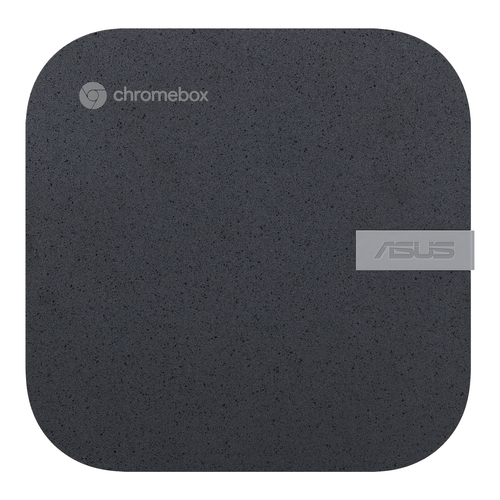

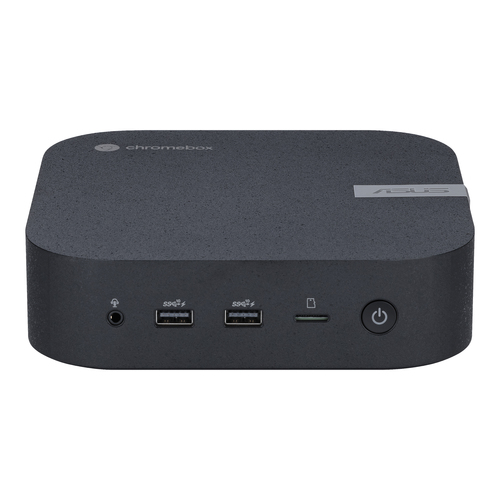

ASUS Chromebox CHROMEBOX5-G3103UN Intel® Core™ i3 i3-1220P 8 GB DDR4-SDRAM 128 GB SSD ChromeOS Mini PC Black
- Brand
- Asus
- Product Family
- Chromebox
- Product code
- CHROMEBOX5-G3103UN
- SKU
- 48S1MZH8SPECL
- EAN/GTIN
- 4711387168714
- ChromeOS
- Intel Core i3-1220P (12MB Cache)
- 8GB (3200MHz) DDR4-SDRAM & 128GB SSD
Product Info
ASUS Chromebox 5 features a 12th Generation Intel® Core™ or Celeron® processor, support for up to four 4K displays, WiFi 6E & 2.5G Ethernet connectivity, 15W wireless charger and Google Play access.
Simple, Speedy and Secure
- Lightning-fast Thunderbolt™ 4
- Support quad 4K displays
- Built-in 15W wireless charger*
- IT management is easier by Chrome Enterprise*
*Wireless charging is an optional function and the maximum charging power depends on the devices.
*Requires Chrome Enterprise Upgrade license.
Ready for Any Task
ASUS Chromebox 5 offers outstanding performance and instantaneous response for incredible productivity. It's powered by up to a 12th Gen Intel® Core™ i7 processor that delivers blistering processing speeds to cater to the most demanding tasks. And with up to 32 GB DDR4 memory, ASUS Chromebox 5 enables easy multitasking without slowdowns.
In addition, Intel Iris® Xe graphics deliver unmatched processing power for stunning, supersmooth visuals. A PCIe® Gen 4 x4 M.2 SSD provides ultrafast data transfers and app launches.
Overall, ASUS Chromebox 5 offers an exceptional user experience that combines superior performance and cutting-edge features for next-level productivity.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor model | i3-1220P |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

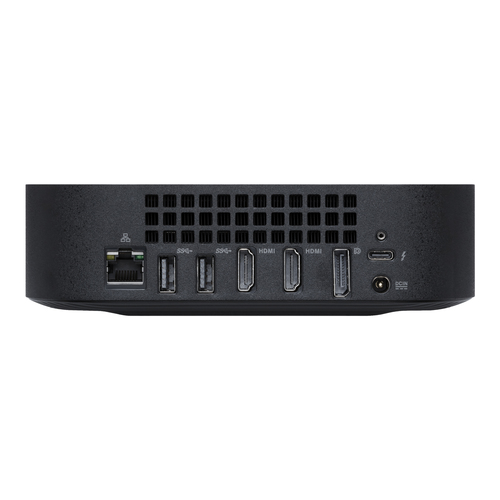

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Design | |
| Chassis type | Mini PC |
| Colour name | ECO Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Product type | Mini PC |
| Software | |
| Operating system installed | ChromeOS |
| Power | |
| Power supply | 150 W |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
| Weight & dimensions | |
| Width | 166.5 mm |
| Depth | 165.8 mm |
| Height | 45.9 mm |
| Weight | 800 g |
| Package width | 334 mm |
| Package depth | 206 mm |
| Package height | 69 mm |
| Package weight | 1.8 kg |
| Display | |
| Display included | No |
