iiyama 10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²
- Brand
- Iiyama
- Product code
- TW1023ASC-B3P
- SKU
- BXQD6QRMM6S24
- EAN/GTIN
- 4948570126927
- Touchscreen 25.6 cm (10.1") IPS
- 16:10
- 25 ms 450 cd/m² 1000:1
- Flicker-free technology
- 18 W
Product Info
The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
Description
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

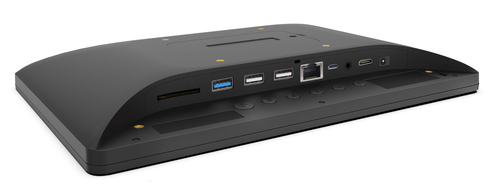

Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Build-in webcam, microphone and speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.5 cm |
| Display diagonal (metric) | 25.5 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Performance | |
| Flicker-free technology | Yes |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 3 W |
| Built-in speaker(s) | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Front bezel colour | Black |
| Glass thickness | 1.25 mm |
| Ports & interfaces | |
| USB Touch port | Yes |
| Network | |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Ergonomics | |
| Cable management | Yes |
| Power | |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Weight & dimensions | |
| Width (with stand) | 255 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 172 mm |
| Weight (with stand) | 800 g |
| Packaging data | |
| Package width | 398 mm |
| Package depth | 398 mm |
| Package height | 223 mm |
| Package weight | 1.36 kg |
| Packaging content | |
| Quick start guide | Yes |
