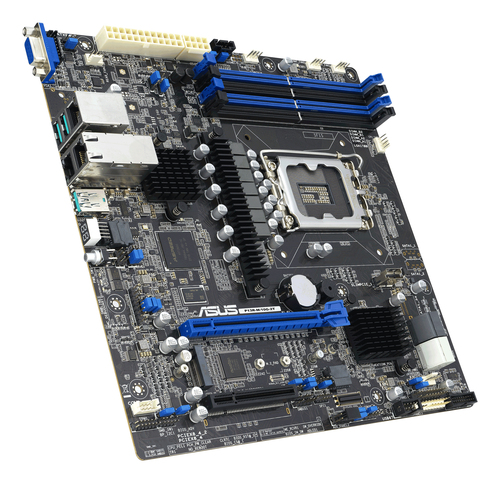

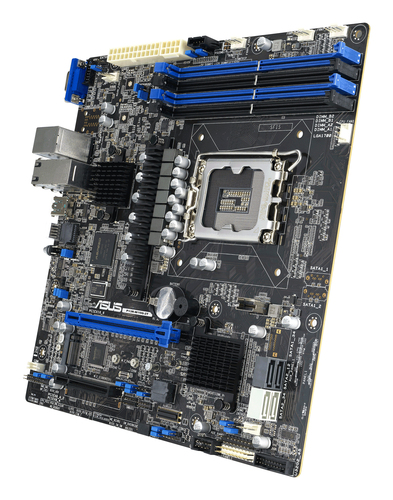

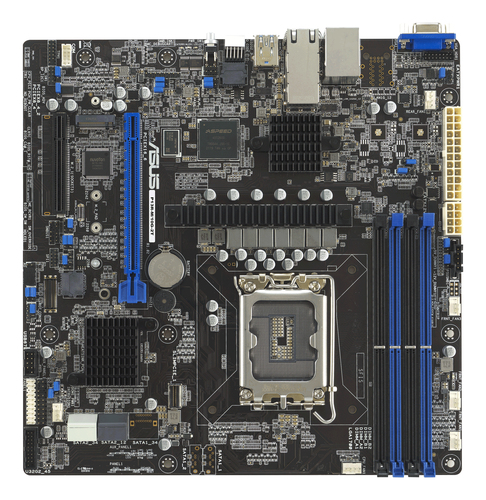

ASUS P13R-M/10G-2T

ASUS P13R-M/10G-2T Intel C262 LGA 1700 micro ATX

Brand: Asus
Product code: 90SB0CC0-M0UAY0
SKU: 3OC96LJVDBH7D
EAN/GTIN: 4711387204351

Powered by eight-core Intel Xeon E-2400-series processor with support for up to 95 W TDP
Flexible expandability with four native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
Dual-port Intel X710-AT2 gigabit Ethernet with teaming support
One M.2 for up to 32 Gbps performance for faster OS booting
Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

€570.51 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ASUS P13R-M/10G-2T. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: ASPEED, Graphics card: AST2600, On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X710-AT2

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Intel Xeon E-2400 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

Processor
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Pentium®, Intel Xeon E
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	3600,4000,4400 MHz
Supported memory clock speed (max)	4400 MHz
Maximum internal memory	128 GB
Supported memory module capacities	8GB, 16GB, 32GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	5
RAID support	Yes
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
On-board graphics card model	Aspeed AST2600
On-board graphics card memory	64 MB
Internal I/O
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	3
Number of SATA III connectors	4
ATX Power connector (24-pin)	Yes
Number of chassis fan connectors	6
Chassis intrusion connector	Yes
TPM connector	Yes
Serial port headers	1
12V power connector	Yes

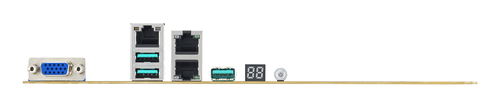

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
Network
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Intel X710-AT2
Features
Motherboard chipset	Intel C262
Component for	Server
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Expansion slots
PCI Express x8 slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	1
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 50 °C
Storage relative humidity (H-H)	20 - 90%
Packaging data
Package width	341 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.3 kg
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
