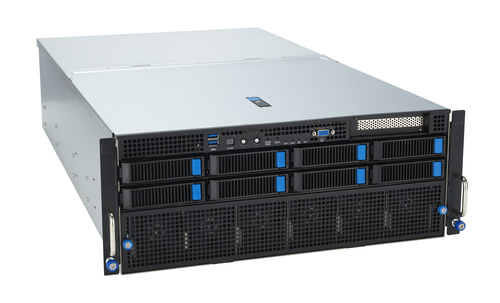

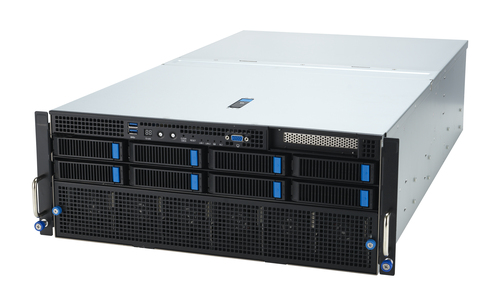

ASUS ESC8000-E11

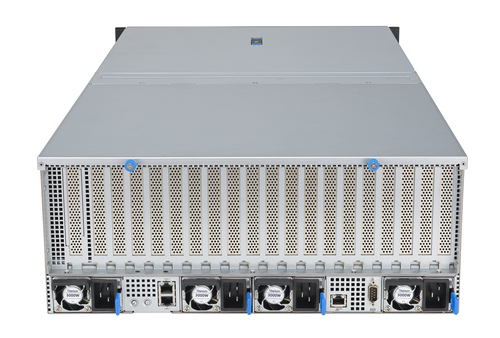

ASUS ESC8000-E11 Rack (4U) Grey
- Brand
- Asus
- Product code
- 90SF02I2-M003E0
- SKU
- XNVFT4TLO0K59
- EAN/GTIN
- 4711387206331
- Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training

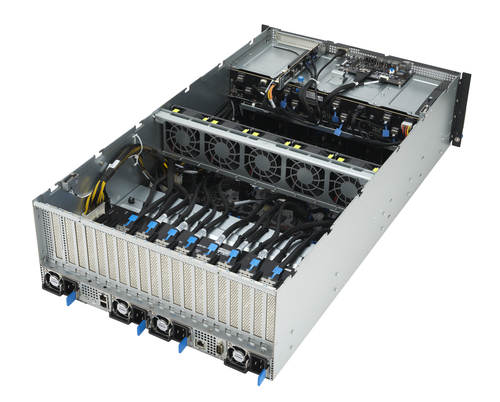

- AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling

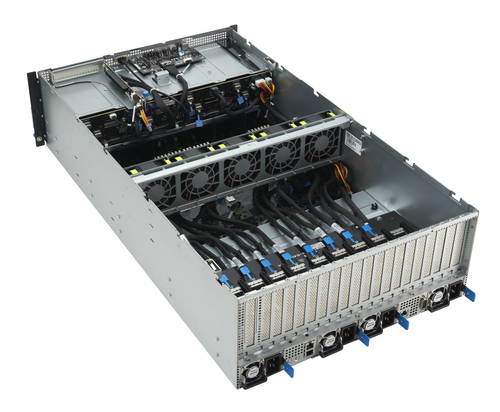

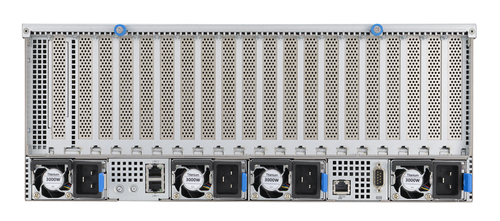

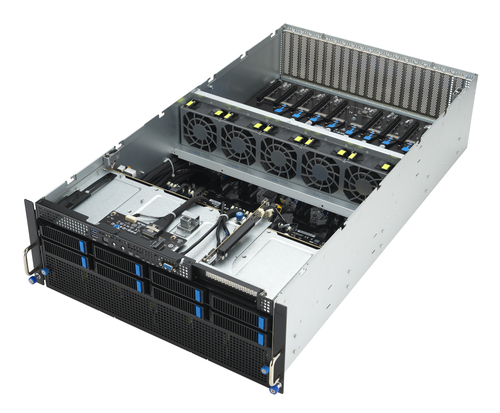

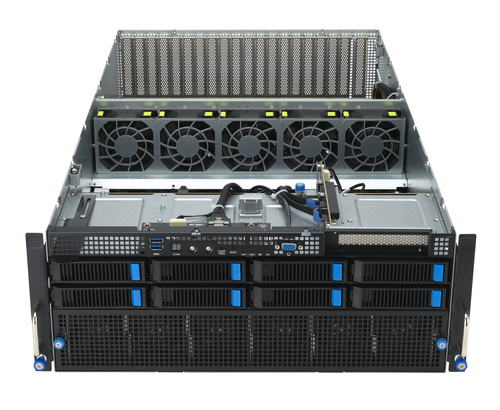

- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
- Cooling solutions: Enhanced air cooling based on CPU TDP for versatile workloads

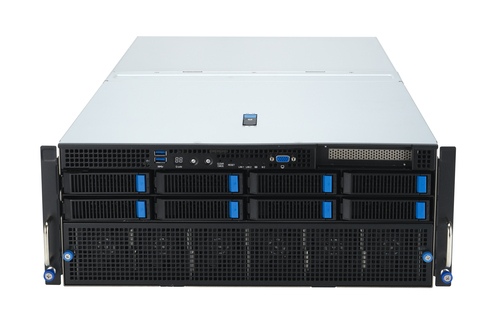

- Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
€10691.6
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Accelerate performance for HPC and AI workloads
Eight dual-slot GPU compute in 4U
ESC8000-E11 is a dual-socket server powered by 5th Gen Intel® Xeon® Scalable Processors and built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with NVIDIA NVLink® Bridge to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Scalable |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Number of DIMM slots | 32 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 32GB, 128GB, 64GB, 16GB, 256GB |
| Maximum internal memory | 6 TB |
| Supported RDIMM clock speeds | 4400 MHz |
| Storage | |
| Number of storage drives supported | 9 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Number of 3.5" bays | 8 |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, RCM, Federal Communications Commission (FCC) |
| Design | |
| Chassis type | Rack (4U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15.5 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 800 mm |
| Height | 174.5 mm |
| Weight | 27 kg |
| Packaging data | |
| Package weight | 52 kg |
