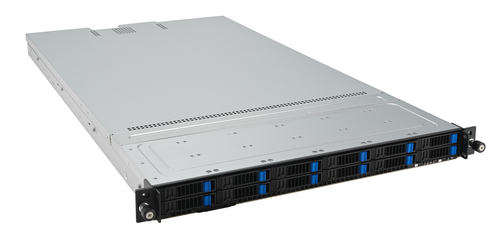

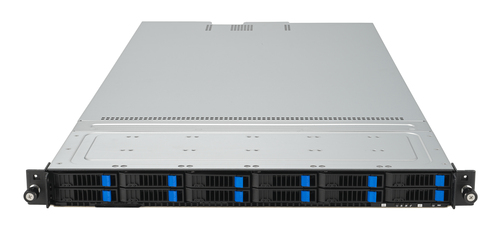

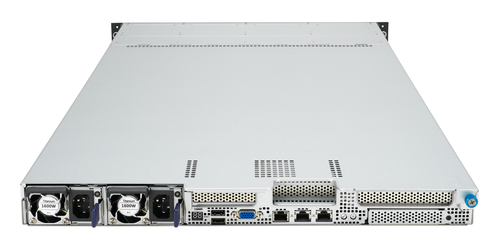

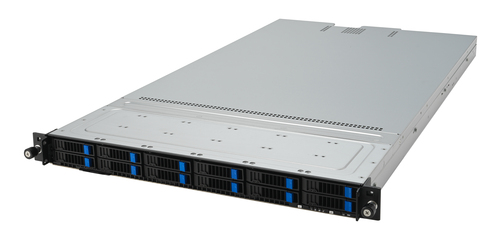

ASUS RS500A-E12-RS12U Socket SP5 Rack (1U) Grey
- Brand
- Asus
- Product code
- 90SF02J1-M000S0
- SKU
- EV4MSYKYJB4EW
- EAN/GTIN
- 4711387030455
- Powerful performance:Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, 4 NVMe in middle bay, and 3 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads:Up to two single-slot GPUs
Product Info
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
AMD EPYC™ 9004 Series Processors
The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.
| Processor | |
|---|---|
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 1 |
| Compatible processor series | AMD EPYC 9004 |
| Memory | |
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 128GB, 64GB, 32GB, 16GB, 256GB |
| Maximum internal memory | 6.14 TB |
| Supported RDIMM clock speeds | 4400,4800,4000,3600 MHz |
| Storage | |
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 12 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| Technical details | |
| Compliance certificates | BSMI, CE, CB, RCM, Federal Communications Commission (FCC) |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Power | |
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 842.5 mm |
| Height | 43.9 mm |
| Weight | 14.2 kg |
| Packaging data | |
| Package weight | 19.2 kg |
