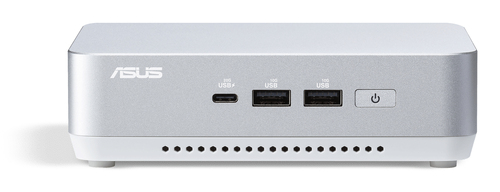

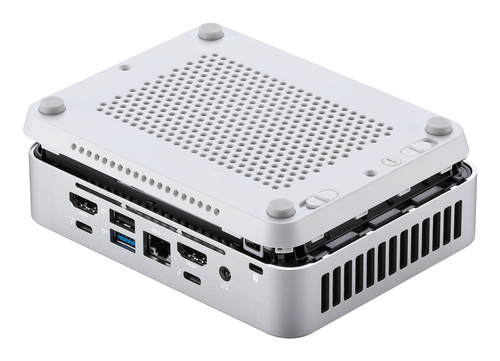

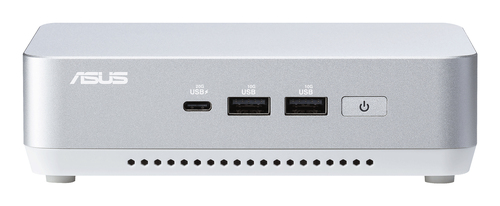

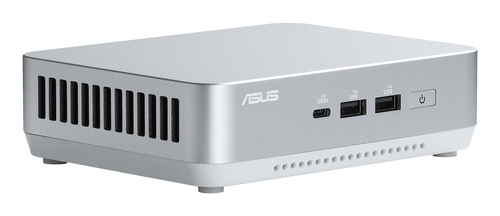

ASUS NUC 14 Pro+ RNUC14RVSU5068A2I Intel Core Ultra 5 125H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 UCFF Mini PC Silver
- Brand
- Asus
- Product Family
- NUC
- Product series
- 14 Pro+
- Product code
- 90AS0061-M001Y0
- SKU
- 19KMG645WECY1
- Windows 11 64-bit
- Intel Core Ultra 5 125H (18MB Cache)
- 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 512GB SSD
Product Info
Smaller, Faster, Better, AI Enabled
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

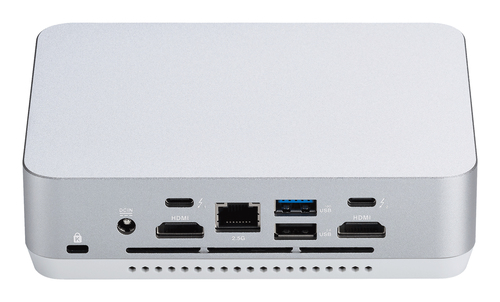

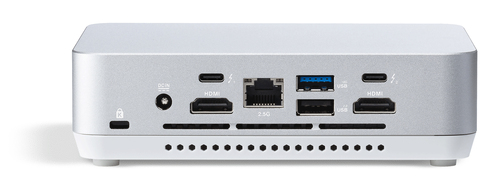

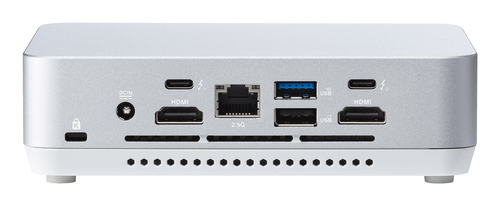

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | UCFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Silver |
| Performance | |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 |
| Power | |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 112 mm |
| Height | 41 mm |
| Weight | 600 g |
| Packaging content | |
| Cables included | AC |
| Display | |
| Display included | No |
