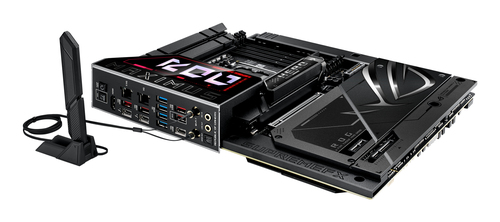

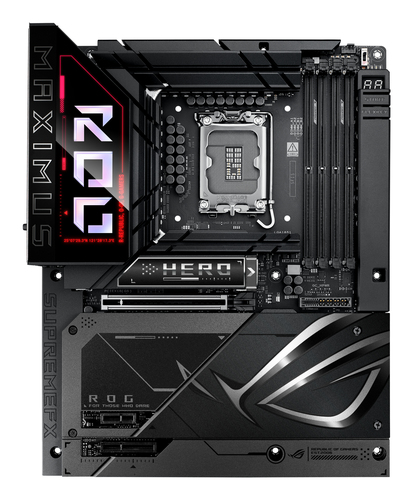

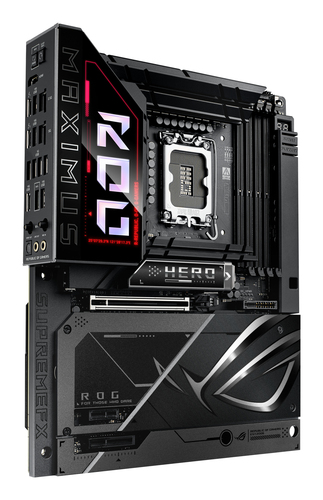

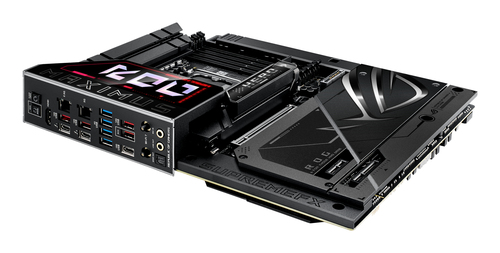

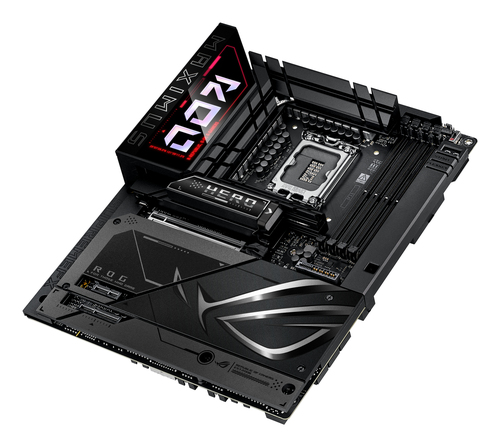

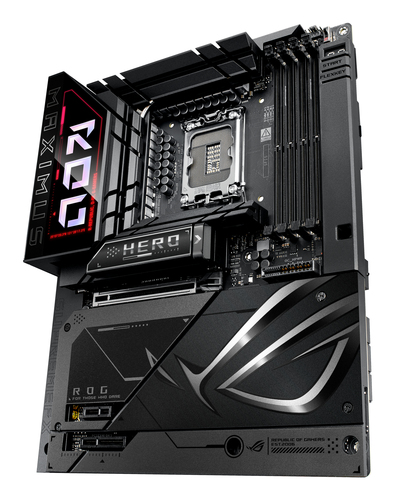

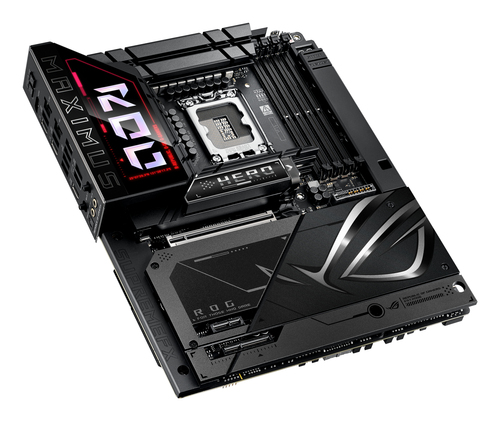

ASUS ROG MAXIMUS Z890 HERO BTF
ASUS ROG MAXIMUS Z890 HERO BTF Intel Z890 LGA 1851 (Socket V1) ATX
- Brand
- Asus
- Product code
- 90MB1KG0-M0EAY0
- SKU
- 7QJR2PKOTODOJ
- EAN/GTIN
- 4711387847602
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
€827.52
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

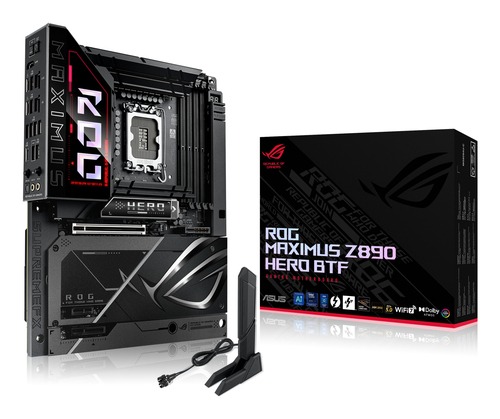

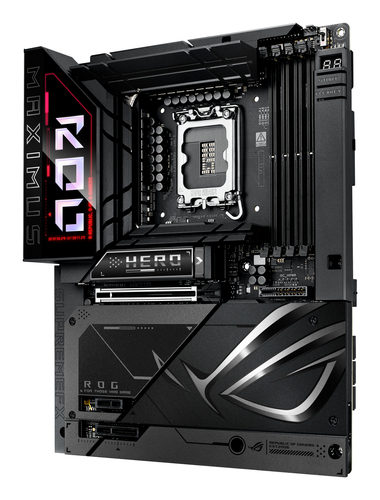

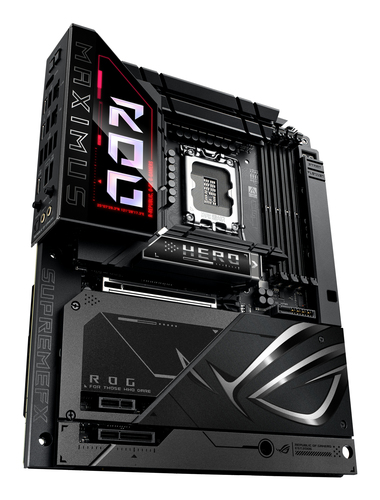

ROG Maximus Z890 HERO BTF
ASUS ROG MAXIMUS Z890 HERO BTF. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
ROG Maximus Z890 HERO BTF
The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel® Core™ Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic.
Advanced BTF Design
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

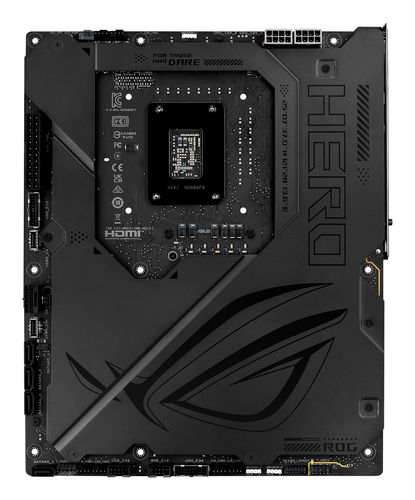

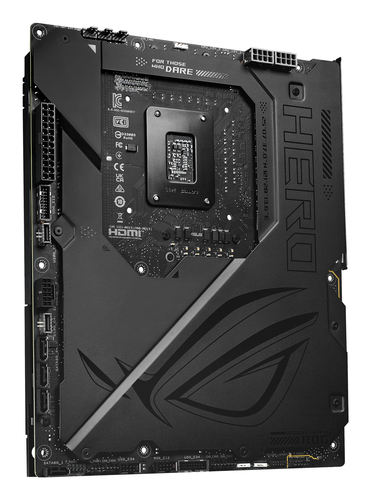

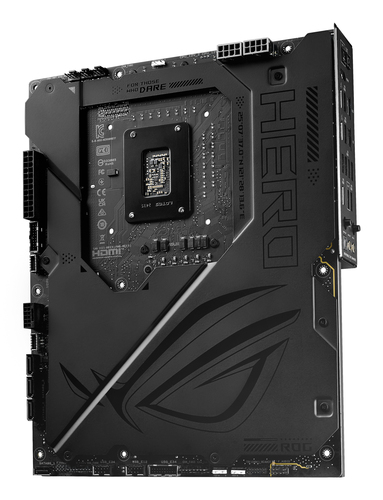

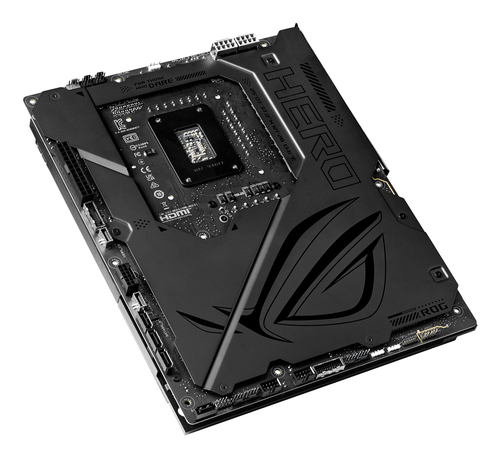

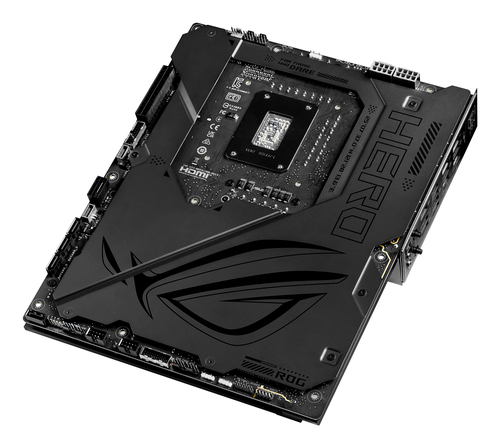

HIDDEN-CONNECTOR DESIGN
The hidden-connector design can be ideal for first-time builders, because it provides easier cable management. The absence of visible cables also creates a clean and tidy look that would normally require an expert.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 6 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 6th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.62 kg |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |

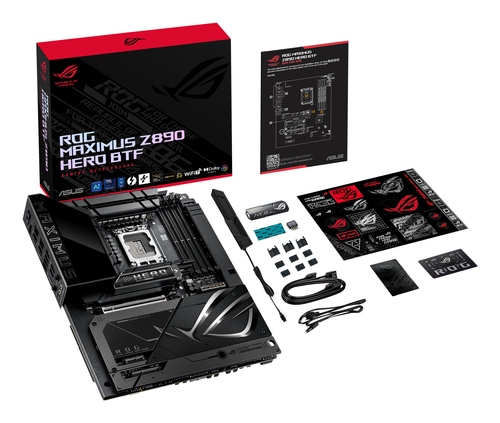

| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Drivers included | Yes |
