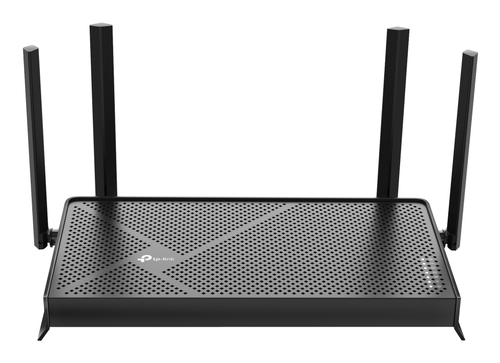

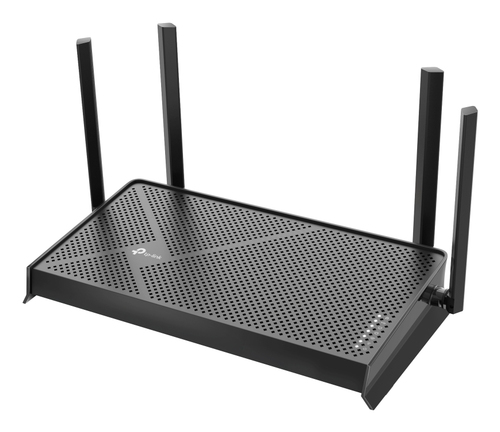

TP-Link Archer BE3600 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
- Brand
- TP-Link
- Product Family
- Archer
- Product code
- ARCHER BE230
- SKU
- 45WOKZ4C2WL06
- EAN/GTIN
- 4895252507997

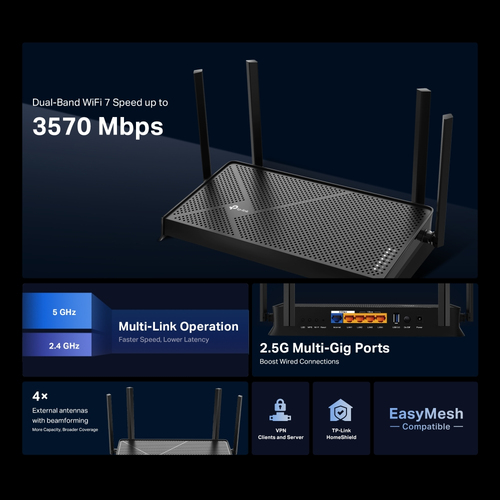

- 3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†

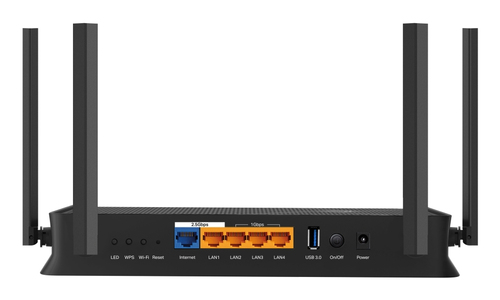

- 2× 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.‡
- Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals
- Easy Setup and Use: Network management has never been easier with the Tether app
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats
- Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers
Product Info
Exploring the New Era of Home WiFi
BE3600 Dual-Band Wi-Fi 7 Router
Next-Level Experience Realized with 3.6 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

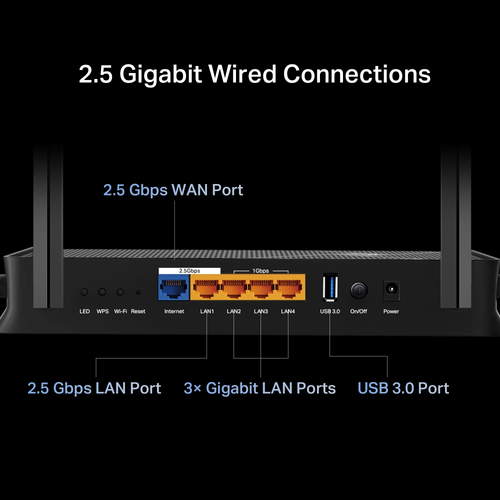

2.5 Gigabit Wired Connections
1× 2.5 Gbps WAN port and 1× 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Boosted WiFi Coverage Throughout Your Home
4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 2882 Mbit/s |
| WLAN data transfer rate (second band) | 688 Mbit/s |
| Modulation | 4096-QAM, OFDMA |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN support | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Number of data streams | 4x4 |
| Security | |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Parental control | Yes |
| DDoS protection | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Features | |
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
