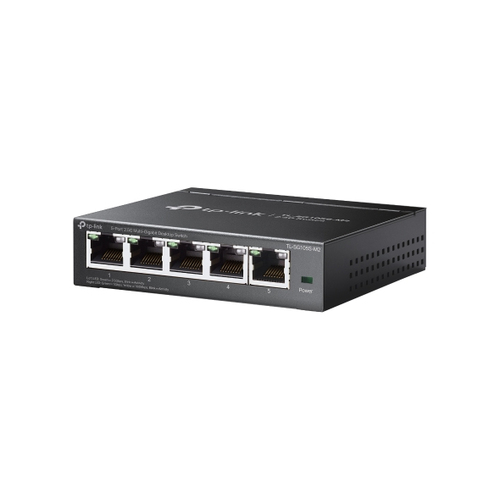

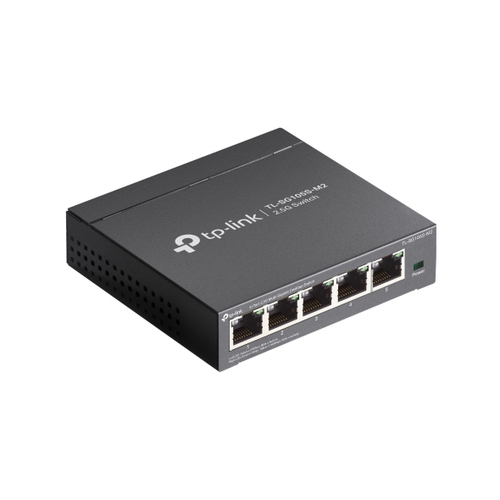

TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black
- Brand
- TP-Link
- Product code
- TL-SG105S-M2
- SKU
- BP05C4F9O7NEZ
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- MAC address table: 4000 entries Switching capacity: 25 Gbit/s
- DC Power supply included
Product Info
2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play. Allows for easy deployment without the need for a technician.

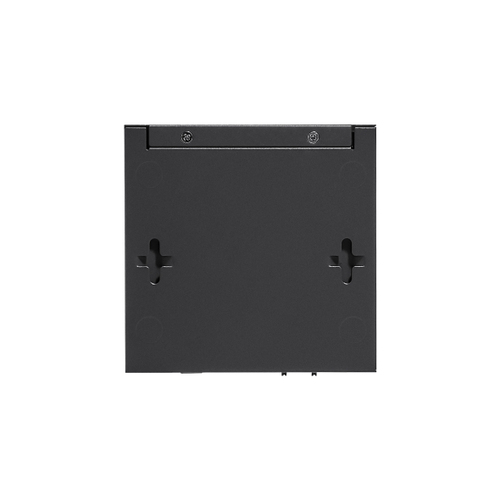

Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| MAC address table | 4000 entries |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Wall mountable | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 5.81 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 19.754 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
