Lenovo ThinkCentre Tiny-In-One 24 LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Black
- Brand
- Lenovo
- Product code
- 12NAGAR1UK
- SKU
- R26MDMTRES7OR
- EAN/GTIN
- 196804349961
- 60.5cm (23.8") Full HD 1920 x 1080 W-LED IPS
- 6ms, 16:9, 250cd/m², 1000:1
- USB, HDMI, DisplayPort
Product Info
Unparalleled collaboration. Quick installation.

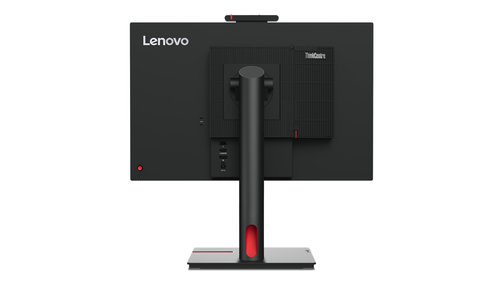

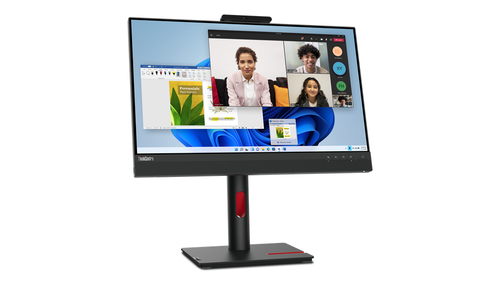

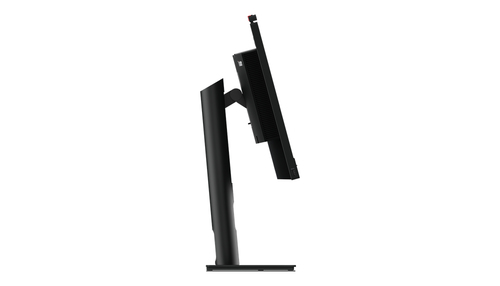

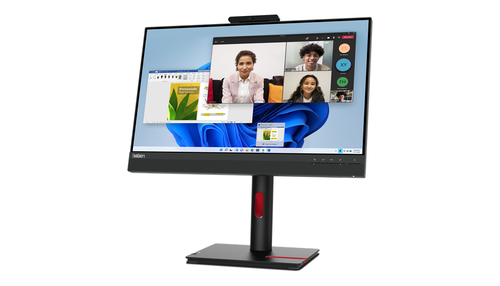

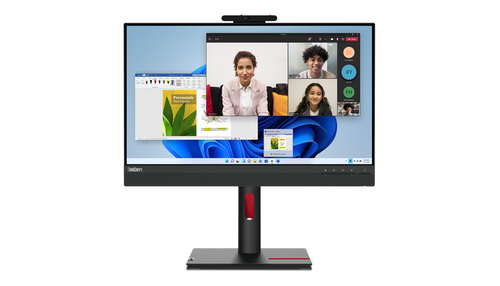

The ThinkCentre Tiny-In-One (TIO) 24 Gen 5 displays visuals and video content with great clarity on the 23.8-inch borderless In-Plane Switching FHD panel with 99% sRGB color support. It provides a complete working experience when paired with its VoIP features, a modular design which allows it to be attached with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen. These can be effortlessly installed and housed in the dedicated slot at the back of the monitor, giving you a cable-free desk. Enjoy a consistent experience while using the classic installation mechanism to quickly and easily mount Tiny PCs to the monitor. Designed for efficient remote collaboration, it has a 1080p RGB webcam with a noise-cancellation microphone for i crystal-clear audio and video. Besides that, the Smart Traffic Light indicator indicates the status of an ongoing interaction or meeting, helping you avoid unforeseen distractions. Two integrated 3W user-facing speakers play the audio with amazing fidelity, making attending meetings a much more pleasant experience. Dedicated VoIP buttons allow you to easily mute or change the volume, making your remote meeting experience much more convenient. User-centric features like ThinkShutter allow you to cover your webcam lens for enhanced privacy and security. Recyclable packaging and optional CO2 offset service for minimal carbon emission footprint make this monitor environment-friendly. In addition to the Tiny PCs, you can also connect other laptops or towers using the HDMI and DP ports, and peripherals using the USB ports. The monitor’s Natural Low Blue Light technology works to reduce the harmful blue light without any color distortion during long working hours. Customize your workstation and easily adjust its various settings using the ThinkColour Software1. In a nutshell, the TIO 24 Gen 5 helps you get a clean, clutter-free desk, collaborate seamlessly and multitask efficiently to maximize productivity.
| Display | |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 6 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Response time (fast) | 4 ms |
| Pixel pitch | 0.275 x 0.275 mm |
| Pixel density | 93 ppi |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Colour depth | 8 bit |
| RGB colour space | sRGB |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| Performance | |
| Low Blue Light technology | Yes |
| Compatible operating systems | Windows 10 Windows 11 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Design | |
| Product colour | Black |
| Colour name | Raven Black |
| Detachable stand | Yes |
| Feet colour | Black/Red |
| Certification | EPEAT Gold Registered EU Energy Label (D-class) ENERGY STAR Certified TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification TÜV Rheinland Low Blue Light (Hardware Solution) |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Built-in KVM switch | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Height adjustment | 15.5 cm |
| Pivot | Yes |
| Pivot angle | -5 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23.5° |
| On Screen Display (OSD) | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power consumption (typical) | 14 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 34 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | External |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Power cable length | 1 m |
| Weight & dimensions | |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 207.6 mm |
| Height (with stand) | 539.6 mm |
| Weight (with stand) | 6 kg |
| Width (without stand) | 539.8 mm |
| Depth (without stand) | 72.8 mm |
| Height (without stand) | 367.6 mm |
| Weight (without stand) | 3.7 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 4.6 cm |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 187 mm |
| Package height | 420 mm |
| Package weight | 9.5 kg |
