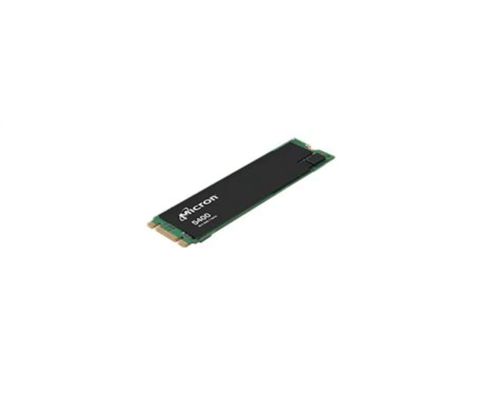

Lenovo 4XB7A82286 internal solid state drive

4XB7A82286 - 889488633777

Lenovo 4XB7A82286 internal solid state drive 240 GB M.2 Serial ATA III 3D TLC NAND

Brand: Lenovo
Product code: 4XB7A82286
SKU: CBRR2TKQ9QSNB
EAN/GTIN: 889488633777

240 GB M.2 Serial ATA III
75000 IOPS
37000 IOPS
3D TLC NAND
S.M.A.R.T. support
Component for: Server/workstation

€1771.83 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ThinkSystem M.2 5400 PRO 240GB Read Intensive SATA 6Gb NHS

Lenovo 4XB7A82286. SSD capacity: 240 GB, SSD form factor: M.2, Component for: Server/workstation

The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.

Specifications

Features

SSD form factor M.2

SSD capacity 240 GB

Interface Serial ATA III

Memory type 3D TLC NAND

Component for Server/workstation

Random read (4KB) 75000 IOPS

Random write (4KB) 37000 IOPS

Read latency 170 µs

Write latency 150 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Mean time between failures (MTBF) 3000000 h

Certification Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)

Power

Power consumption (read) 2.5 W

Power consumption (write) 3 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -40 - 85 °C

Operating relative humidity (H-H) 5 - 95%

Non-operating vibration 3.13 G

Non-operating shock 1500 G

Weight & dimensions

Width 22 mm

Depth 80 mm

Height 3.9 mm
