Lenovo S4520

4XB7A17105 - 889488589173

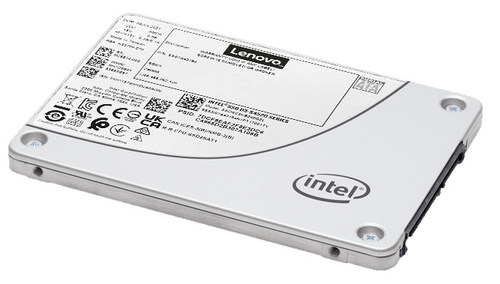

Lenovo S4520 7.68 TB 2.5 inch Serial ATA III 3D TLC NAND

Brand: Lenovo
Product code: 4XB7A17105
SKU: J2DXMTCZZS004
EAN/GTIN: 889488589173

7.68 TB 2.5" Serial ATA III
86000 IOPS
30000 IOPS
3D TLC NAND
Component for: Server/workstation

€18907.83 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ThinkSystem 2.5" S4520 7.68TB Read Intensive SATA 6Gb HS SSD

Lenovo S4520. SSD capacity: 7.68 TB, SSD form factor: 2.5", Data transfer rate: 6 Gbit/s, Component for: Server/workstation

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.

Specifications

Features

SSD form factor 2.5"

SSD capacity 7.68 TB

Interface Serial ATA III

Memory type 3D TLC NAND

Component for Server/workstation

Data transfer rate 6 Gbit/s

Random read (4KB) 86000 IOPS

Random write (4KB) 30000 IOPS

Random latency - read (up to) 103 µs

Random latency - write (up to) 57 µs

Sequential latency - read (up to) 37 µs

Sequential latency - write (up to) 37 µs

Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read

Mean time between failures (MTBF) 2000000 h

Drive writes per day (DWPD) 2.6

Certification FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP

Power

Power consumption (write) 4.4 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage relative humidity (H-H) 5 - 95%

Operating vibration 2.17 G

Non-operating vibration 3.13 G

Operating shock 1000 G

Non-operating shock 1000 G

Weight & dimensions

Width 174 mm

Depth 133 mm

Height 63 mm

Weight 434 g

Other features

Endurance rating 36.5 PB
