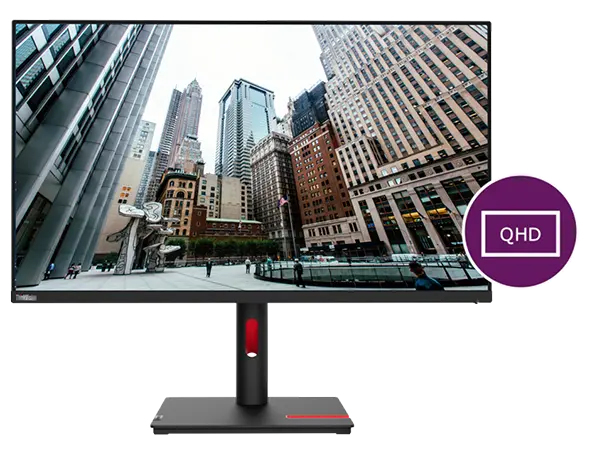

Lenovo ThinkVision T32h-30 LED display
63D3GAT1UK - 196801200746
Lenovo ThinkVision T32h-30 LED display 80 cm (31.5 inch) 2560 x 1440 pixels Quad HD Black
- Brand
- Lenovo
- Product Family
- ThinkVision
- Product code
- 63D3GAT1UK
- SKU
- 01DOFHCO3HOZD
- EAN/GTIN
- 196801200746
- 80 cm (31.5") LED IPS
- Quad HD 2560 x 1440 pixels 16:9
- 60 Hz 6 ms 350 cd/m² 1000:1
- 32 W
€592.9
(Inc. VAT)
(Delivery 2-4 working days)
31.5" 16:9 In-Plane Switching 2560 x 1440, Modular Camera Support, 0.273x0.273 mm, 93 dpi, 1000:1, 350 cd/m²
Lenovo ThinkVision T32h-30. Display diagonal: 80 cm (31.5"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Description
Delightful, thoughtful display
Display your best work on the ThinkVision T32h-30 Monitor’s ultra-wide In-Plane Switching screen made even more generous with its distraction-free 3-side NearEdgeless design and multi-monitor support. And if that’s not enough to make you gaze at it a little longer, its 2560 x 1440 resolution QHD display gives you rich immersive views with incredible clarity and detail, backed by a 99% sRGB color gamut. The ThinkVision T32h-30 Monitor’s Natural Low Blue Light technology reduces harmful blue light, so you don’t strain your eyes despite the hours you’ll be tempted to spend before it.
Connect to some superpowers
Speed and connectivity will be your allies with the ThinkVision T32h-30 Monitor’s wide range of connectivity options. The monitor’s USB Type-C , the one-cable solution helps you transfer data in a flash. It also performs as a fast charger with 90W support and a Smart Power function that dynamically manages the energy consumed across connected devices. Supercharge your connectivity options with the monitor’s HDMI 2.0, dedicated DP 1.4, and RJ45 ports. Supersize your video conferencing and multimedia experiences with the ThinkVision T32h-30 Monitor’s modular camera and soundbar support.
Put your mind and body at ease

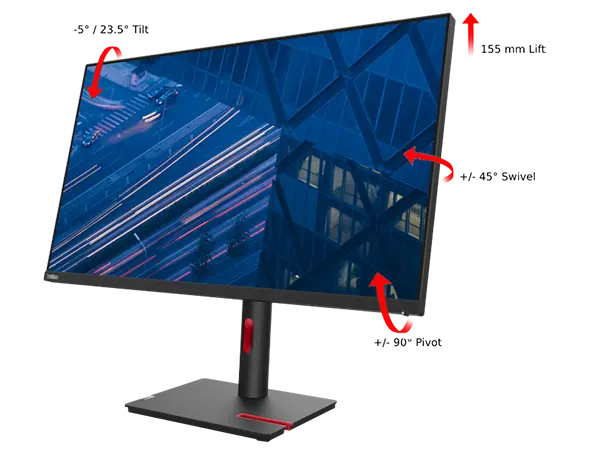

ThinkVision T32h-30 Monitor is designed to put you at ease. Its ergonomic stand is highly adjustable and offers an increased lift range so you can lift, tilt, swivel, and pivot the monitor to meet your most comfortable working posture. Add to that an optimal lowest position that is designed to make every user feel comfortable. You can also VESA mount the monitor to keep your desk clutter-free. If you’re environmentally conscious this monitor will put your mind at ease too, as it stays up-to-date with the latest TCO 9.0 regulations that meet stringent ecological standards. The ThinkVision T32h-30 Monitor is enveloped in green packaging that is easy on the environment too.
Specifications
Display
Display diagonal
80 cm (31.5")
Display resolution
2560 x 1440 pixels
HD type
Quad HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
350 cd/m²
Response time
6 ms
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
3000000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Response time (fast)
4 ms
Pixel pitch
0.273 x 0.273 mm
Pixel density
93 ppi
Colour depth
10 bit
RGB colour space
sRGB
Colour gamut
99%
Performance
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
No
Built-in camera
No
Design
Product colour
Black
Colour name
Raven Black
Certification
Windows 10, Windows 11
Compliance industry standards
ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS
Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Eye Comfort

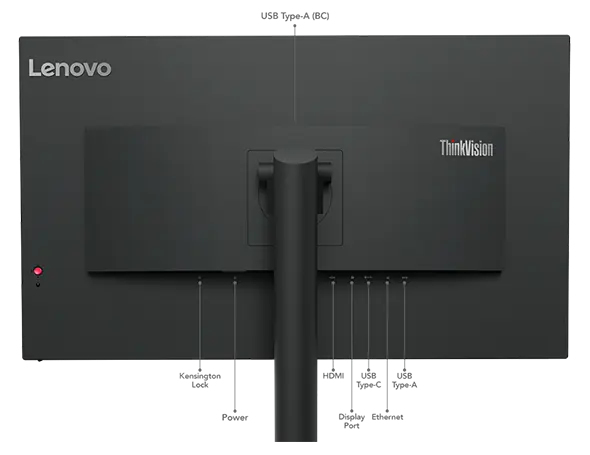

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of upstream ports
1
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
4
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Audio output
Yes
Network
Ethernet LAN
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Height adjustment
15.5 cm
Pivot
Yes
Pivot angle
-90 - 90°
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt angle range
-5 - 23.5°
On Screen Display (OSD)
Yes
Power
Power consumption (typical)
32 W
Power consumption (standby)
0.5 W
Power consumption (max)
153 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply type
Internal
Packaging content
Stand included
Yes
Cables included
AC, USB Type-C to USB Type-C
Quick start guide
Yes
Power cable length
1.8 m
Weight & dimensions
Width (with stand)
714.2 mm
Depth (with stand)
234.9 mm
Height (with stand)
599.5 mm
Weight (with stand)
9.9 kg
Width (without stand)
714.2 mm
Depth (without stand)
59.5 mm
Height (without stand)
420.9 mm
Weight (without stand)
7.2 kg
Bezel width (side)
2 mm
Bezel width (top)
2 mm
Bezel width (bottom)
1.86 cm
Packaging data
Package width
950 mm
Package depth
525 mm
Package height
148 mm
Package weight
14 kg
