Lenovo 4XC7A08276 network card Internal Fiber 32000 Mbit/s
- Brand
- Lenovo
- Product code
- 4XC7A08276
- SKU
- Y5NU5607O0PHK
- Wired
- PCI Express 4.0 Fiber
- 32000 Mbit/s
- Internal Component for: Server
Product Info

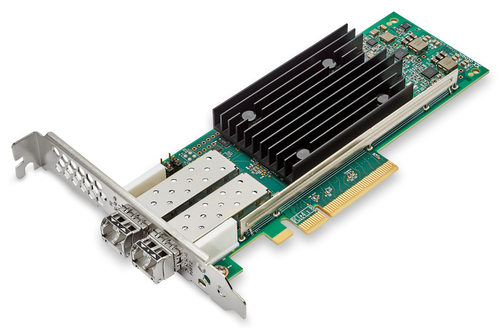

The QLogic 2770 Series 32 Gb Fibre Channel (FC) Host Bus Adapters (HBAs) are Generation 6 (Gen 6) FC adapters for Lenovo ThinkSystem servers. These adapters offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. With performance of up to 1 million I/O operations per second (IOPS) per port, these adapters can be used to support all-flash arrays (AFAs) -- Fibre Channel storage systems comprised completely of high-speed solid-state drives.
This product guide describes the QLogic 2770 Series HBAs for Lenovo servers and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 4.0 |
| Network | |
| Maximum data transfer rate | 32000 Mbit/s |
| Full duplex | Yes |
| Design | |
| Component for | Server |
| Internal | Yes |
| Antenna | No |
| Certification | UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules, CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 Japan VCCI: Class A New Zealand and Australia AS/NZS: Class A Korea KC-RRA Class A Taiwan BSMI CNS 13438 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 69 mm |
