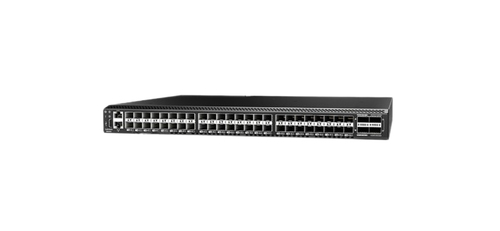

Lenovo DB620S Gigabit Ethernet (10/100/1000) 1U Black
- Brand
- Lenovo
- Product code
- 6415L3A
- SKU
- GQ3MPE110QEWU
- Basic switching RJ-45 Ethernet ports quantity: 1 Console port: Mini-USB
- 10G support
- Switching capacity: 16 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
Product Info
The Lenovo ThinkSystem DB620S 32Gb FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality that supports highly virtualized environments to meet the demands of hyper-scale, private cloud storage, and growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB620S FC SAN Switch is a compact 1U rack-mount switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment.
This product guide provides essential technical and pre-sales information on the ThinkSystem DB620S FC SAN Switch, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem DB620S FC SAN Switch and consider its use in IT solutions.
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 24 |
| Console port | Mini-USB |
| Power connector | AC-in jack |
| Network | |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Certification | FCC Part 15, Subpart B (Class A) EN 55022 (CE mark) (Class A) EN 55024 (CE mark) ICES-003 (Canada) (Class A) AS/NZ 55022 (Australia) (Class A) VCCI (Japan) (Class A) EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 UL/CSA 60950 EN 60950 IEC 60950 EU RoHS |
| Performance | |
| Noise level | 65 dB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 192 W |
| Power consumption (max) | 205 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 655 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 356 mm |
| Height | 44 mm |
| Weight | 7.7 kg |
| Packaging data | |
| Rack rails | Yes |
