Lenovo 4XC7A08236 network card
4XC7A08236 - 889488497294
Lenovo 4XC7A08236 network card Internal Ethernet 10000 Mbit/s
- Brand
- Lenovo
- Product code
- 4XC7A08236
- SKU
- 0P4UOSAH9H80U
- EAN/GTIN
- 889488497294
- Wired
- PCI Express 3.0 Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server
Product Info

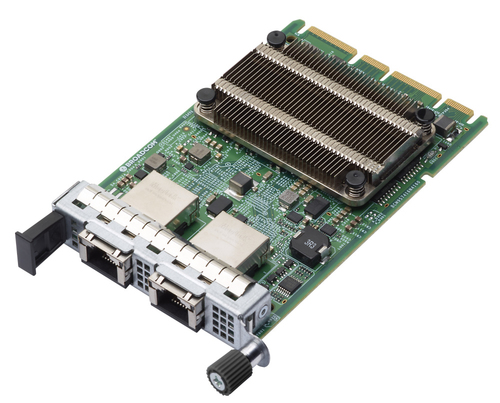

ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter
Lenovo 4XC7A08236. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s
The Broadcom 57416 10Gb BASE-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Design | |
| Component for | Server |
| Internal | Yes |
| Antenna | No |
| Form factor | OCP 3.0 |
| Certification | CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 115 mm |
