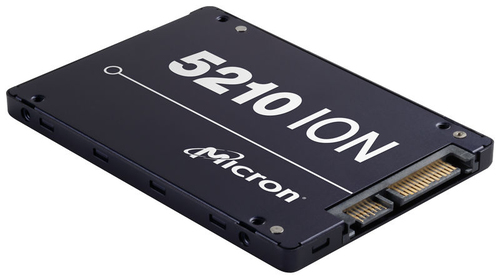

Lenovo 4XB7A38146 internal solid state drive

4XB7A38146 - 8894885046022

Lenovo 4XB7A38146 internal solid state drive 7.68 TB 2.5 inch Serial ATA III QLC 3D NAND

Brand: Lenovo
Product code: 4XB7A38146
SKU: MBKHH7QG6N9B8
EAN/GTIN: 8894885046022

7.68 TB 2.5" Serial ATA III
90000 IOPS
2000 IOPS
QLC 3D NAND
256-bit AES
S.M.A.R.T. support
Component for: Server/workstation

€10056.8 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

2.5" 5210 7.68TB Entry SATA 6Gb Hot Swap QLC

Lenovo 4XB7A38146. SSD capacity: 7.68 TB, SSD form factor: 2.5", Component for: Server/workstation

The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.

This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

Specifications

Features

Security algorithms 256-bit AES

SSD form factor 2.5"

SSD capacity 7.68 TB

Interface Serial ATA III

Memory type QLC 3D NAND

NVMe No

Component for Server/workstation

Hardware encryption No

Random read (4KB) 90000 IOPS

Random write (4KB) 2000 IOPS

Read latency 540 µs

Write latency 530 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read

Mean time between failures (MTBF) 2000000 h

Certification Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016

Power

Power consumption (read) 2.8 W

Power consumption (write) 6.3 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -40 - 85 °C

Operating relative humidity (H-H) 5 - 95%

Non-operating vibration 3.13 G

Non-operating shock 1500 G

Weight & dimensions

Width 70 mm

Depth 100 mm

Height 7 mm

Weight 70 g
