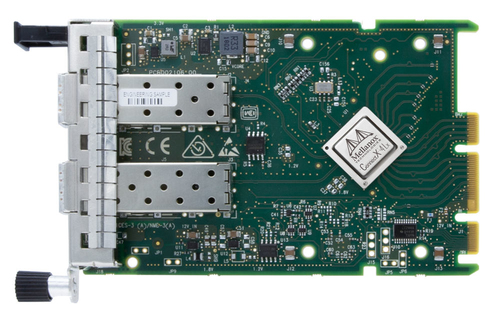

Lenovo Mellanox ConnectX-4 Lx Internal Fiber 25000 Mbit/s
- Brand
- Lenovo
- Product code
- 4XC7A08246
- SKU
- XAAFS4PGJ92ZZ
- EAN/GTIN
- 889488497362
- Highest performing boards for applications requiring high bandwidth, low latency and high message rate
- 25GbE connectivity for servers and storage
- Standard PCIe and Open Compute Project form factor
- Industry leading throughput and latency for Web 2.0, Cloud and Big Data applications
- Maximizing data centers’ return on investment (ROI) with Multi-Host technology
- Smart interconnect for x86, Power, ARM, and GPU-based compute and storage platforms
- Cutting-edge performance in virtualized overlay networks
- Efficient I/O consolidation, lowering data center costs and complexity
- Virtualization acceleration
- Power efficiency
Product Info
25 Gigabit Ethernet Adapter Cards supporting Mellanox Multi-Host® technology, RDMA, Overlay Networks Encapsulation/Decapsulation and more
ConnectX-4 Lx EN Network Controller with 25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
ConnectX-4 Lx EN provides an unmatched combination of 25GbE bandwidth, sub-microsecond latency and a 75 million packets per second message rate. It includes native hardware support for RDMA over Converged Ethernet, Ethernet stateless offload engines, Overlay Networks, and GPUDirect® Technology.
Open Compute Project
The Open Compute Project (OCP) mission is to develop and specify the most cost-efficient, energy-efficient and scalable enterprise and Web 2.0 data centers. Mellanox ConnectX-4 Lx EN OCP adapter cards deliver leading Ethernet connectivity for performance-driven server and storage applications in Web 2.0, Enterprise Data Centers and Cloud environments. The OCP Mezzanine adapter form factor is designed to mate into OCP servers. ConnectX-4 Lx EN for Open Compute Project (OCP) improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments. Moreover, ConnectX-4 Lx EN introduces the new Multi-Host technology, which enables a new innovative rack design that achieves maximum CAPEX and OPEX savings without compromising on network performance.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba |
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet |
| Ethernet LAN data rates | 25000 Mbit/s |
| Design | |
| Component for | Server |
| Product colour | Green, Stainless steel |
| Internal | Yes |
| Certification | CB, cTUVus, CE, FCC, VCCI, ICES, RCM |
| Compatible products | SR635 (7Y98/7Y99), SR655 (7Y00/7Z01) |
| Power | |
| Power consumption (typical) | 9.47 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
