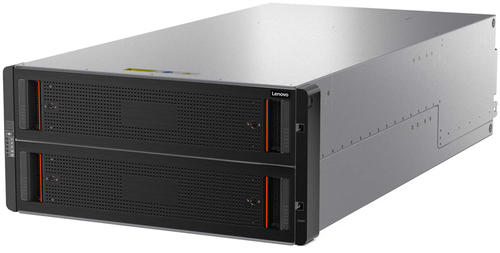

Lenovo D3284 disk array 0 TB Rack (5U) Black
- Brand
- Lenovo
- Product code
- 6413E5F
- SKU
- FGJ5WZ0U82E1C
- EAN/GTIN
- 5054444031699
- Versatile, scalable storage expansion with dual Environmental Service Module (ESM) configurations for high availability and performance
- Flexible host connectivity to match diverse client needs for direct attach storage with support for 6 Gb or 12 Gb SAS RAID adapters for advanced data protection or 6 Gb or 12 Gb SAS Host Bus Adapters (HBAs) for maximum JBOD performance
- 12 Gb SAS drive-side connectivity and storage density with support for 84x 3.5-inch large form factor (LFF) drives in a 5U rack space
- Scalability of up to 336 drives per HBA with the attachment of up to four D3284 daisy-chained expansion enclosures to satisfy growing needs for storage capacity and performance
- Flexibility in daisy chaining of up to two D3284 and two D1212 or one D1224 drive enclosures
- Flexibility in storing data on high performance SAS SSDs or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types on a single HBA to perfectly meet performance and capacity requirements for various workloads
Product Info
The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density, speed, scalability, security, and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U and RAID or JBOD (non-RAID) host connectivity.
This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | JBOD |
| Data transfer rate | 12 Gbit/s |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | No |
| SAS host port | Yes |
| Number of SAS host ports | 3 |
| Design | |
| Chassis type | Rack (5U) |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power supply unit (PSU) capacity | 2214 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 250 V |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 933 mm |
| Height | 221 mm |
| Weight | 131 kg |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
