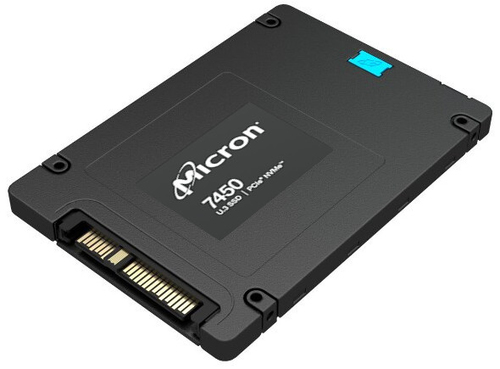

Lenovo 4XB7A82675 internal solid state drive 1.92 TB 2.5" PCI Express 4.0 NVMe 3D TLC NAND
- Brand
- Lenovo
- Product code
- 4XB7A82675
- SKU
- JPW4C9N8HJL2V
- EAN/GTIN
- 889488635993
- 1.92 TB 2.5" PCI Express 4.0
- 800000 IOPS
- 120000 IOPS
- 3D TLC NAND NVMe
- Hardware encryption
- S.M.A.R.T. support ECC
- Component for: Server/workstation
Product Info
The ThinkSystem 7450 PRO Read Intensive NVMe SSDs are general-purpose yet high-performance family of NVMe solid-state drives. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the ThinkSystem 7450 PRO Read Intensive NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 7450 PRO SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD form factor | 2.5" |
| SSD capacity | 1.92 TB |
| Interface | PCI Express 4.0 |
| Memory type | 3D TLC NAND |
| NVMe | Yes |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Random read (4KB) | 800000 IOPS |
| Random write (4KB) | 120000 IOPS |
| Random latency - read (up to) | 80 µs |
| Random latency - write (up to) | 15 µs |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| Power | |
| Power consumption (read) | 10.5 W |
| Power consumption (write) | 14 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Weight | 70 g |
