Lenovo 4XB7A17125 internal solid state drive

4XB7A17125 - 0889488589241

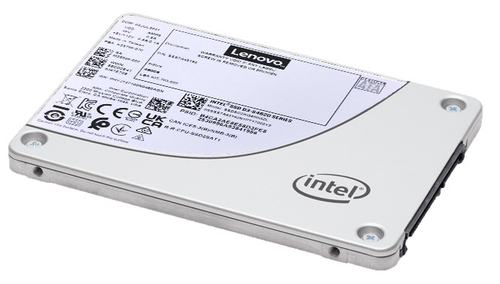

Lenovo 4XB7A17125 internal solid state drive 480 GB 2.5 inch Serial ATA III 3D TLC NAND

Brand: Lenovo
Product code: 4XB7A17125
SKU: CWNHUDNKW4WIH
EAN/GTIN: 0889488589241

480 GB 2.5" Serial ATA III
Read speed: 550 MB/s 82000 IOPS
Write speed: 500 MB/s 50000 IOPS
3D TLC NAND
Hardware encryption 256-bit AES
S.M.A.R.T. support
Component for: Server/workstation

€3300.07 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ThinkSystem 2.5" S4620 480GB Mixed Use SATA 6Gb HS SSD

Lenovo 4XB7A17125. SSD capacity: 480 GB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 500 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.

Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.

Specifications

Features

Security algorithms 256-bit AES

SSD form factor 2.5"

SSD capacity 480 GB

Interface Serial ATA III

Memory type 3D TLC NAND

Component for Server/workstation

Hardware encryption Yes

Data transfer rate 6 Gbit/s

Read speed 550 MB/s

Write speed 500 MB/s

Random read (4KB) 82000 IOPS

Random write (4KB) 50000 IOPS

Read latency 36 µs

Write latency 36 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Mean time between failures (MTBF) 2000000 h

Certification FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP

Power

Power consumption (write) 3 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Operating relative humidity (H-H) 5 - 95%

Operating vibration 2.17 G

Non-operating vibration 3.13 G

Operating shock 1000 G

Non-operating shock 1000 G

Maximum operating altitude 3050 m

Weight & dimensions

Width 70 mm

Depth 100 mm

Height 7 mm

Weight 70 g

Packaging data

Package width 174 mm

Package depth 133 mm

Package height 63 mm

Package weight 434 g

Logistics data

Harmonized System (HS) code 84717070
