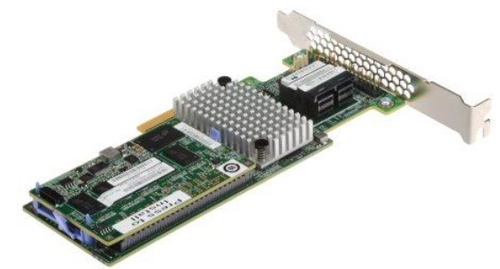

Lenovo 46C9110 RAID controller

46C9110 - 883436446327

Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s

Brand: Lenovo
Product code: 46C9110
SKU: K3GSLAI88HDRV
EAN/GTIN: 883436446327

Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
RAID levels: 0, 1, 10
12 Gbit/s
SSD support

€510.72 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ServeRAID M5210 SAS/SATA Controller

Lenovo 46C9110. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 10, Data transfer rate: 12 Gbit/s, Internal memory type: DDR3. Width: 69 mm, Depth: 168 mm, Height: 15 mm. PCI Card form factor: Half-height (low-profile)

The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5210 is a low profile PCIe adapter, and the M5210e is integrated in servers such as the x3750 M4 and x3650 M4 HD. The two controllers share a common set of upgrades, simplifying inventory management.

Specifications

Ports & interfaces

Supported storage drive interfaces SAS, Serial ATA

Host interface PCI Express x8

PCI Express slots version 3.0

Internal mini-SAS ports 2

Performance

RAID levels 0, 1, 10

Data transfer rate 12 Gbit/s

SSD support Yes

Internal memory type DDR3

Memory clock speed 1866 MHz

S.M.A.R.T. support Yes

Certification UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC

Compatible products Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Enterprise Linux Server (SLES) 12 SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi)

System requirements

Windows operating systems supported Yes

Mac operating systems supported Yes

Operational conditions

Operating temperature (T-T) 5 - 40 °C

Operating relative humidity (H-H) 8 - 93%

Weight & dimensions

Width 69 mm

Depth 168 mm

Height 15 mm

Weight 99 g

Package dimensions (WxDxH) 143 x 238 x 51 mm

Package weight 320 g

Logistics data

Harmonized System (HS) code 84733080

Other features

PCI Card form factor Half-height (low-profile)
