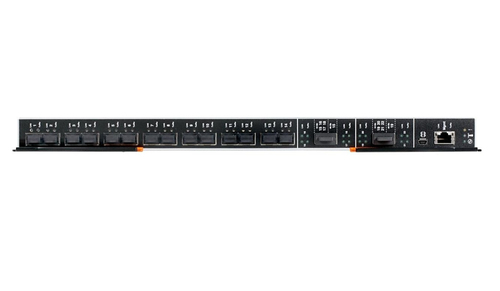

Lenovo 00FM514 network switch
Lenovo 00FM514 network switch Managed L2/L3 Black
- Brand
- Lenovo
- Product code
- 00FM514
- SKU
- MYQW8WUBFTQ2W
- EAN/GTIN
- 883436674799
- Managed L2/L3 SNMP V1,V3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 128000 entries
- Access Control List (ACL)
€4890.92
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Lenovo® Flex System Fabric EN4093R 10Gb Scalable Switch provides unmatched scalability, port flexibility, and performance. The switch also delivers innovations to help address several networking concerns today and provides capabilities that help you prepare for the future.
This switch can support up to 64x 10 Gb Ethernet connections while offering Layer 2/3 switching, in addition to OpenFlow and "easy connect" modes. It installs within the I/O module bays of the Flex System™ Enterprise Chassis. This switch can help clients migrate to a 10 Gb or 40 Gb Ethernet infrastructure, offers cloud-ready virtualization features (such as Lenovo Virtual Fabric and VMready®), and is Software Defined Network (SDN) ready.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Data transmission | |
| MAC address table | 128000 entries |
| Static route | Yes |
| Number of static routes | 128 |
| Security | |
| DHCP features | DHCP relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP V1,V3 |
| Routing protocols | BGP, OSPF, RIP |
| Design | |
| Product colour | Black |
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communique 2004/9; Communique 2004/22 Saudi Arabia EMC.CVG, 28 October 2002 |
| Performance | |
| Mean time between failures (MTBF) | 236805 h |
| Weight & dimensions | |
| Width | 401 mm |
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
| Packaging data | |
| Package width | 508 mm |
| Package depth | 432 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
