Lenovo 4XB7A10231 internal solid state drive
Lenovo 4XB7A10231 internal solid state drive 1.6 TB 2.5" SAS TLC 3D NAND
- Brand
- Lenovo
- Product code
- 4XB7A10231
- SKU
- WFJB6DM21OZ60
- EAN/GTIN
- 889488482931
- 1.6 TB 2.5" SAS
- 239700 IOPS
- 170400 IOPS
- TLC 3D NAND
- 256-bit AES
- S.M.A.R.T. support ECC
- Component for: Server/workstation
€5962.07
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

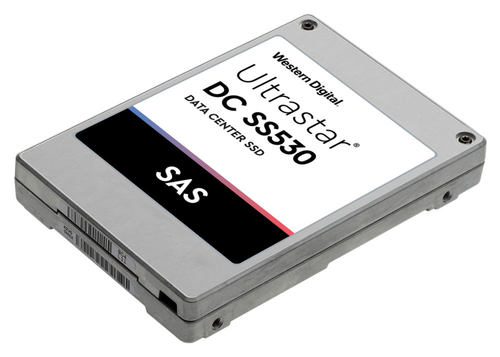

The ThinkSystem SS530 Performance SAS 12Gb SSDs use second generation 3D TLC NAND flash memory technology with a 12 Gb SAS interface to provide a high-performance storage solution. These drives offer high endurance supporting up to 10 full drive writes per day (10 DWPD) over 5 years meaning they are ideal for write-intensive applications.
This product guide provides essential presales information to understand the SS530 12 Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Security algorithms | 256-bit AES |
| SSD form factor | 2.5" |
| SSD capacity | 1.6 TB |
| Interface | SAS |
| Memory type | TLC 3D NAND |
| NVMe | No |
| Component for | Server/workstation |
| Hardware encryption | No |
| Data transfer rate | 12 Gbit/s |
| Random read (4KB) | 239700 IOPS |
| Random write (4KB) | 170400 IOPS |
| Random latency - read (up to) | 92 µs |
| Random latency - write (up to) | 26 µs |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 VCCI V-3/2013-04 Class B CNS 13438: 2006 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU REACH 1907/2006 WEEE Directive 2002/96/EC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 3.1 G |
| Operating shock | 1500 G |
| Maximum non-operating altitude | 3050 m |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 175 g |
| Other features | |
| Endurance rating | 29.41 PB |
