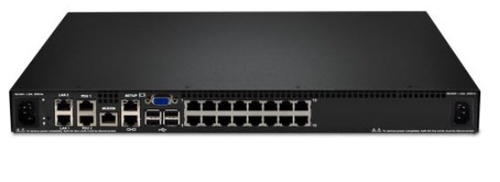

Lenovo 1754D1X KVM switch
Lenovo 1754D1X KVM switch Rack mounting Black
- Brand
- Lenovo
- Product code
- 1754D1X
- SKU
- U9FXS1J79HDBR
- EAN/GTIN
- 883436082860
- Rack mounting 1U Black
- Keyboard port type: USB Mouse port type: USB Video port type: VGA
- 1600 x 1200 pixels
- 18 W
€5642.39
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The IBM GCM16 Global Console Manager includes the following items:
- 16-port console switch
- Mounting hardware for EIA space for rack sidewall compartment
- One 1U filler panel
- Two C13/C14 rack power cables
- RJ45-DB9F DCE adapter for use with Setup port
- RJ45-DB9M DTE adapter for use with Modem port
- 16 terminators for daisy-chaining configurations
- Installation publications and warranty
| Ports & interfaces | |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Audio connections | No |
| Console port | RJ-45 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 16 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Performance | |
| Maximum resolution | 1600 x 1200 pixels |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 431.8 mm |
| Depth | 324 mm |
| Height | 43.7 mm |
| Weight | 3.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
