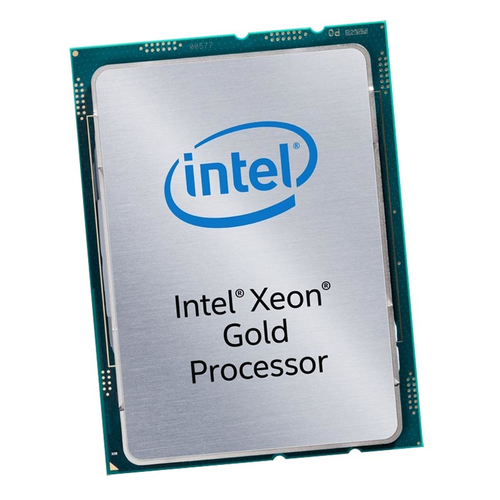

Lenovo Intel Xeon Gold 6128 processor

7XG7A05588 - 889488458400

Lenovo Intel Xeon Gold 6128 processor 3.4 GHz 19.25 MB L3

Brand: Lenovo
Product code: 7XG7A05588
SKU: 4ECFXZUGXLUZA
EAN/GTIN: 889488458400

Intel® Xeon® Gold 6128 3.4 GHz
19.25 MB L3 LGA 3647 (Socket P)
Processor cores: 6 14 nm 64-bit 115 W
Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
Cooler included

€3719.35 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Intel Xeon Gold 6128 6C 115W 3.4GHz ThinkSystem SR650 Processor option kit

Lenovo Intel Xeon Gold 6128. Processor family: Intel® Xeon® Gold, Processor socket: LGA 3647 (Socket P), Processor lithography: 14 nm. Memory channels: Hexa-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Scalability: S4S

With two processors installed, the two processors are connected together using one UPI link. With four processors installed, the processors are connected together using a ring topology, using two UPI links, one to each adjacent processor in the ring.

Processors with the T suffix have more robust thermal characteristics (higher T-case). Processors with the M suffix support support greater than 768 GB per processor.

Specifications

Processor

Processor generation 1st Generation Intel® Xeon® Scalable

Processor model 6128

Processor base frequency 3.4 GHz

Processor family Intel® Xeon® Gold

Processor cores 6

Processor socket LGA 3647 (Socket P)

Component for Server/workstation

Processor lithography 14 nm

Processor threads 12

Processor operating modes 64-bit

Processor boost frequency 3.7 GHz

Processor cache 19.25 MB

Processor cache type L3

Thermal Design Power (TDP) 115 W

Cooler included Yes

Stepping H0

Processor codename Skylake

Memory

Maximum internal memory supported by processor 768 GB

Memory types supported by processor DDR4-SDRAM

Memory clock speeds supported by processor 2666 MHz

Memory channels Hexa-channel

ECC Yes

Graphics

On-board graphics card No

Features

Execute Disable Bit Yes

Market segment Server

Maximum number of PCI Express lanes 48

PCI Express slots version 3.0

Scalability S4S

Embedded options available No

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology) Yes

Intel® Turbo Boost Technology 2.0

Intel® AES New Instructions (Intel® AES-NI) Yes

Enhanced Intel SpeedStep Technology Yes

Intel Trusted Execution Technology Yes

Intel® Speed Shift Technology Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Intel TSX-NI Yes

Intel 64 Yes

Intel Virtualization Technology (VT-x) Yes

Intel Virtualization Technology for Directed I/O (VT-d) Yes

Conflict-Free processor Yes

Intel Turbo Boost Max Technology 3.0 No

Intel® Optane™ Memory Ready No

Intel® vPro™ Platform Eligibility Yes

Operational conditions

Tcase 74 °C

Logistics data

Harmonized System (HS) code 85423119
