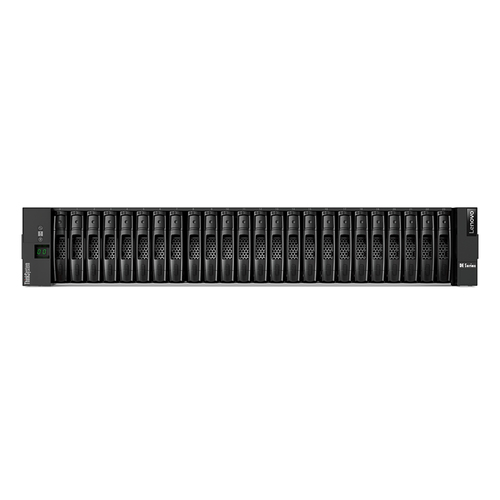

Lenovo ThinkSystem DE4000F disk array Rack (2U) Black
- Brand
- Lenovo
- Product code
- 7Y76A00GWW
- SKU
- 2WW9W2MC7AQGF
Product Info
Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000F delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000F All Flash Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000F All Flash Storage Array and consider its use in their solutions.
| Storage | |
|---|---|
| Installed storage drive type | SSD |
| Supported storage drive types | SSD |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black |
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Power | |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 913 W |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Height | 85 mm |
| Weight | 24.6 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
