Lenovo 4XB7A17145 internal solid state drive

4XB7A17145 - 0889488525881

Lenovo 4XB7A17145 internal solid state drive 1.92 TB U.2 PCI Express 4.0 NVMe TLC 3D NAND

Brand: Lenovo
Product code: 4XB7A17145
SKU: WT6TNSWZEM3R8
EAN/GTIN: 0889488525881

1.92 TB U.2 PCI Express 4.0
400000 IOPS
59000 IOPS
TLC 3D NAND NVMe
S.M.A.R.T. support
Component for: Server/workstation

€3172.47 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

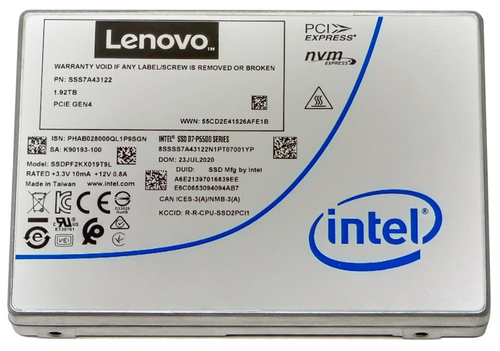

ThinkSystem 2.5" U.2 P5500 1.92TB Read Intensive NVMe PCIe 4.0 x4 HS

Lenovo 4XB7A17145. SSD capacity: 1.92 TB, SSD form factor: U.2, Component for: Server/workstation

The Intel SSD D7-P5500 Series Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P5500 SSDs and consider their use in IT solutions.

Specifications

Features

SSD form factor U.2

SSD capacity 1.92 TB

Interface PCI Express 4.0

Memory type TLC 3D NAND

NVMe Yes

Component for Server/workstation

Random read (4KB) 400000 IOPS

Random write (4KB) 59000 IOPS

Random latency - read (up to) 78 µs

Random latency - write (up to) 22 µs

Sequential latency - read (up to) 10 µs

Sequential latency - write (up to) 12 µs

S.M.A.R.T. support Yes

Hot-swap Yes

Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read

Mean time between failures (MTBF) 2000000 h

Certification FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC

Power

Power consumption (read) 8.5 W

Power consumption (write) 15 W

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Operating relative humidity (H-H) 5 - 90%

Operating vibration 2.17 G

Operating shock 1000 G

Maximum operating altitude 3048 m

Technical details

Sustainability certificates TCO

Weight & dimensions

Width 70 mm

Depth 100 mm

Height 15 mm

Weight 146 g

Other features

Endurance rating 3.5 PB
