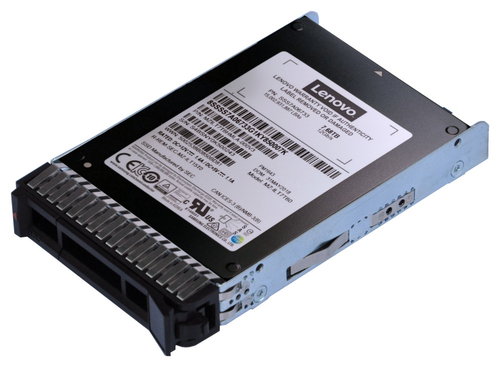

Lenovo 4XB7A17055 internal solid state drive 7.68 TB 2.5" SAS V-NAND TLC
- Brand
- Lenovo
- Product code
- 4XB7A17055
- SKU
- VCTSJFUR0E8XU
- 7.68 TB 2.5" SAS
- 230000 IOPS
- 90000 IOPS
- V-NAND TLC
- S.M.A.R.T. support
- Component for: Server/workstation
Product Info
The PM1643a Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
This product guide provides essential presales information to understand the PM1643a Entry SAS 12Gb SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD form factor | 2.5" |
| SSD capacity | 7.68 TB |
| Interface | SAS |
| Memory type | V-NAND TLC |
| NVMe | No |
| Component for | Server/workstation |
| Hardware encryption | No |
| Data transfer rate | 12 Gbit/s |
| Random read (4KB) | 230000 IOPS |
| Random write (4KB) | 90000 IOPS |
| Random latency - read (up to) | 130 µs |
| Random latency - write (up to) | 45 µs |
| Read latency | 240 µs |
| Write latency | 220 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Power | |
| Power consumption (read) | 9 W |
| Power consumption (write) | 12 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 158 g |
