Lenovo 4XB7A13654 internal solid state drive

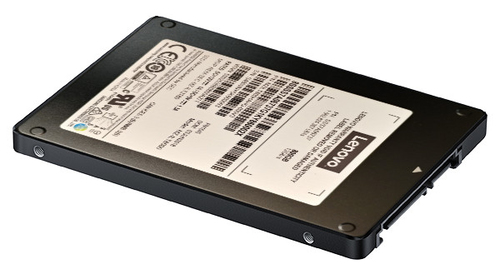

Lenovo 4XB7A13654 internal solid state drive 1.6 TB 2.5" SAS
- Brand
- Lenovo
- Product code
- 4XB7A13654
- SKU
- 4OZC7MJKLE51J
- EAN/GTIN
- 889488475452
- 1.6 TB 2.5" SAS
- 230000 IOPS
- 90000 IOPS
- S.M.A.R.T. support
- Component for: Server/workstation
€3388.1
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The ThinkSystem PM1645 Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the Enterprise Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD form factor | 2.5" |
| SSD capacity | 1.6 TB |
| Interface | SAS |
| NVMe | No |
| Component for | Server/workstation |
| Data transfer rate | 12 Gbit/s |
| Random read (4KB) | 230000 IOPS |
| Random write (4KB) | 90000 IOPS |
| Read latency | 106 µs |
| Write latency | 60 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Power | |
| Power consumption (read) | 9 W |
| Power consumption (write) | 9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 140 g |
