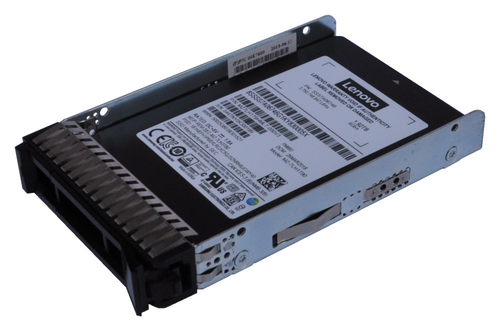

Lenovo 4XB7A10197 internal solid state drive
Lenovo 4XB7A10197 internal solid state drive 960 GB 2.5" Serial ATA III
- Brand
- Lenovo
- Product code
- 4XB7A10197
- SKU
- 1QHRH5XESRFZJ
- EAN/GTIN
- 889488468997
- Low cost, read-intensive SSD from Samsung
- 2.5-inch industry standard form factor with hot-swap tray
- 6 Gbps SATA interface
- Advanced ECC Engine and End-to-End Data Protection
- Samsung 32 layer V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND
- Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
- Dynamic Thermal Guard Protection protects the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature
€874.38
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Lenovo ThinkSystem PM883 Entry SATA 6Gb solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD form factor | 2.5" |
| SSD capacity | 960 GB |
| Interface | Serial ATA III |
| NVMe | No |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 25000 IOPS |
| Read latency | 120 µs |
| Write latency | 40 µs |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Endurance rating (for 5 years) | 0.8 GB/day |
| TBW rating | 1366 |
| Certification | UL, TUV, FCC, CE Mark, C-Tick Mark, BSMI, KCC |
| Power | |
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 3.1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Weight & dimensions | |
| Width | 133 mm |
| Depth | 174 mm |
| Height | 63 mm |
| Weight | 433 g |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
